Industrial Wash Systems
Powerful industrial wash systems provide heavy-duty cleaning power for mining and oil vehicles.
About Our
Manual & Robotic Wash Systems

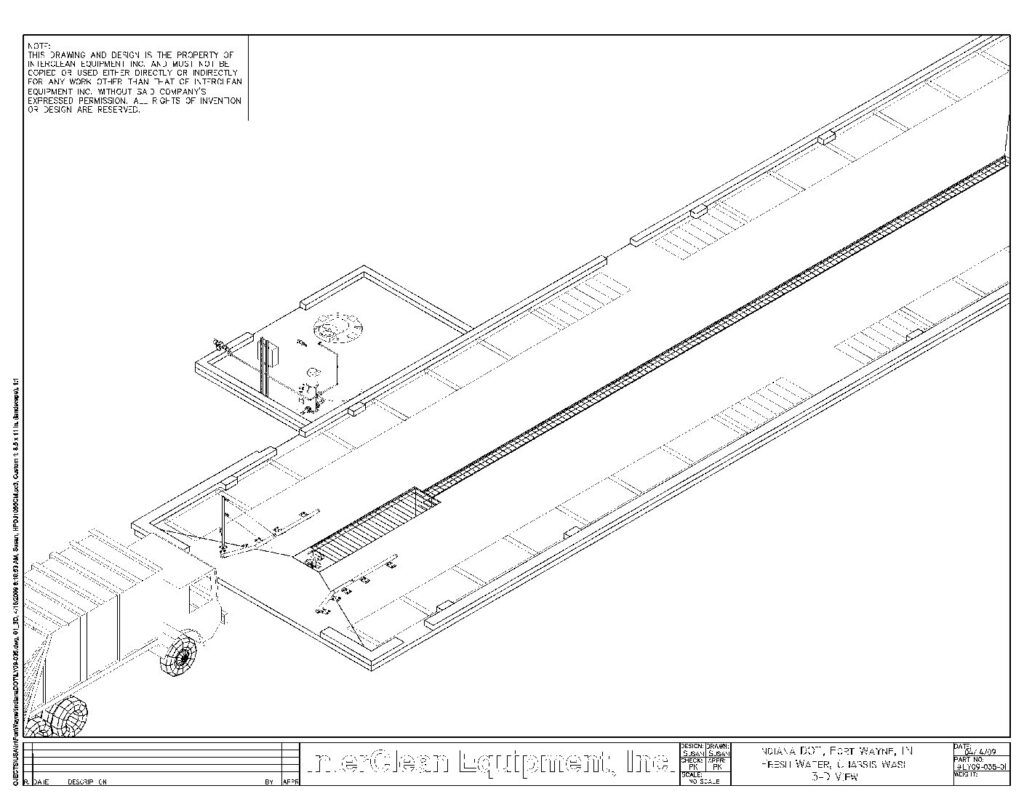

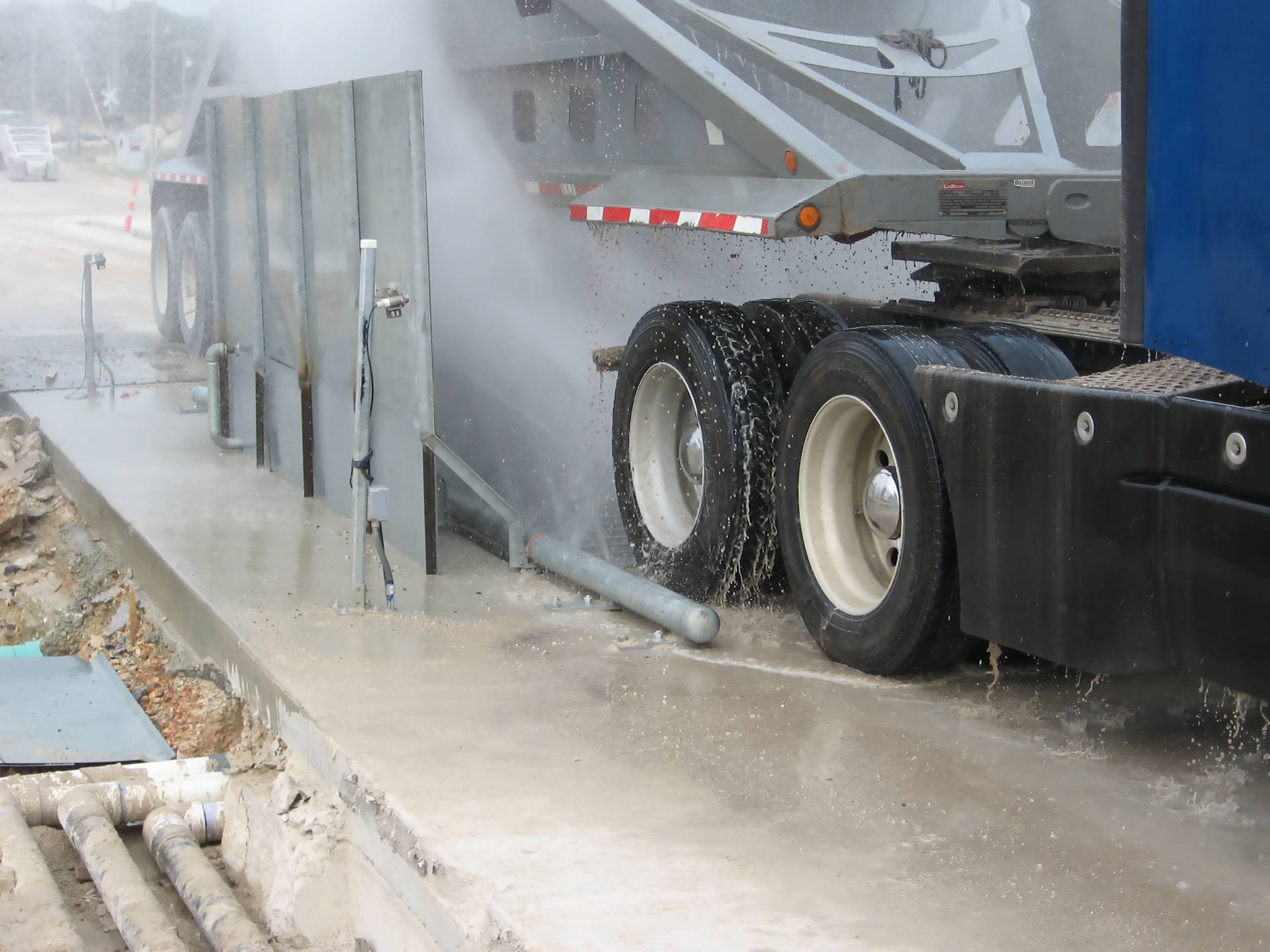

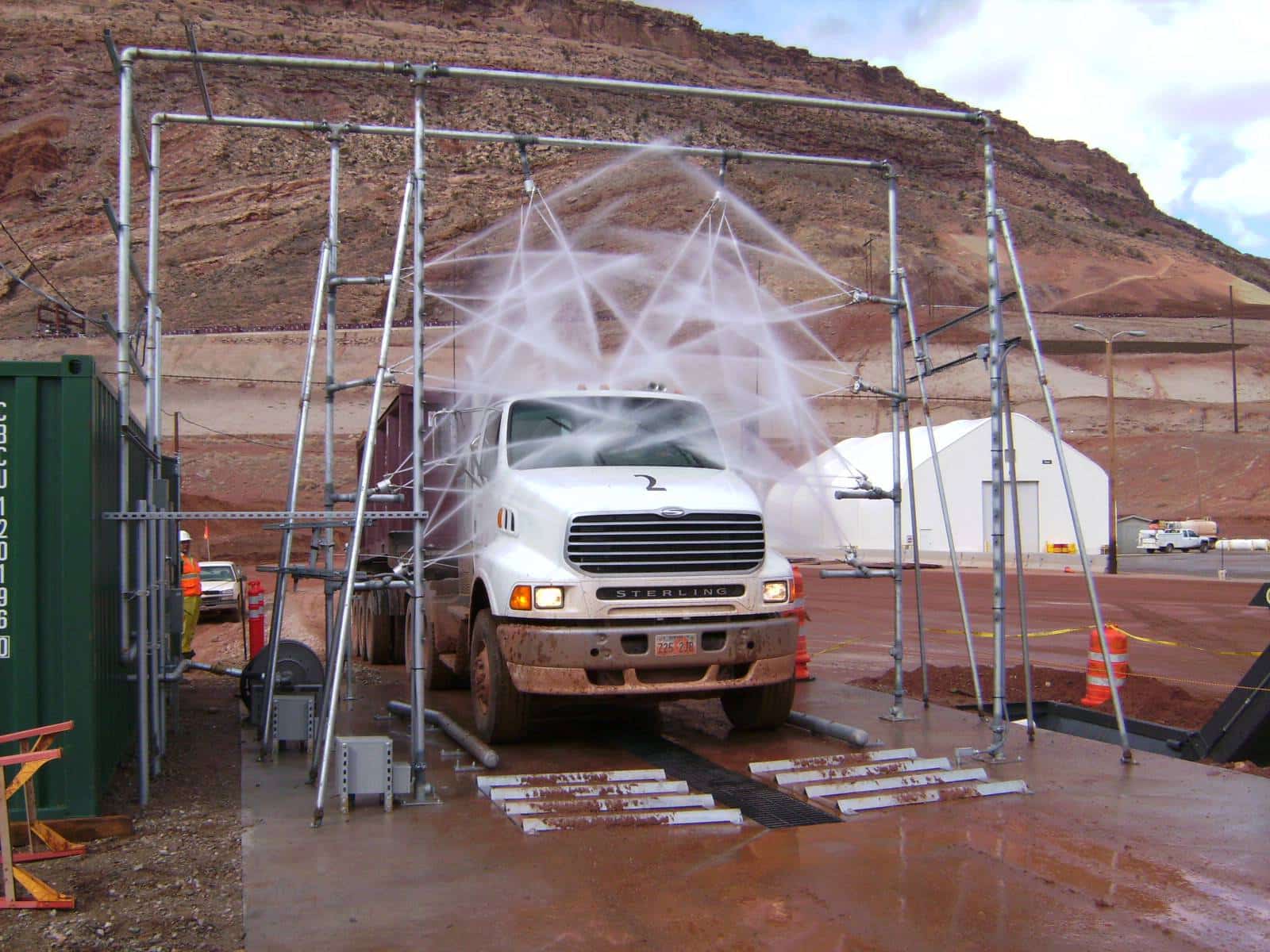

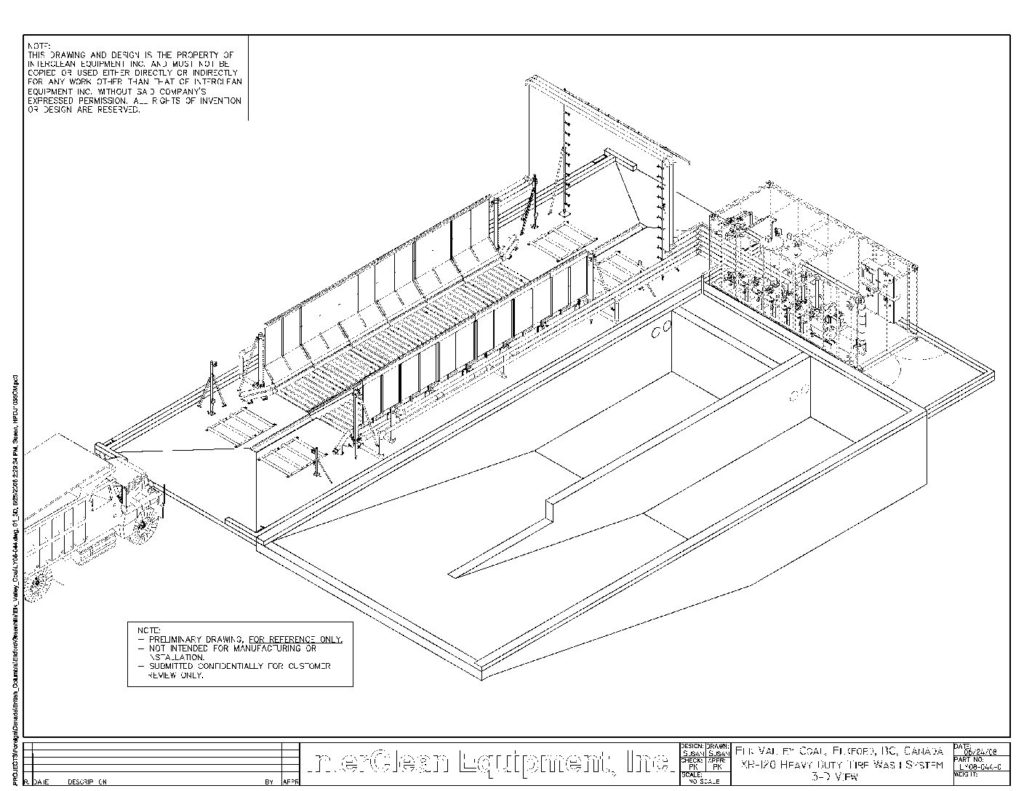

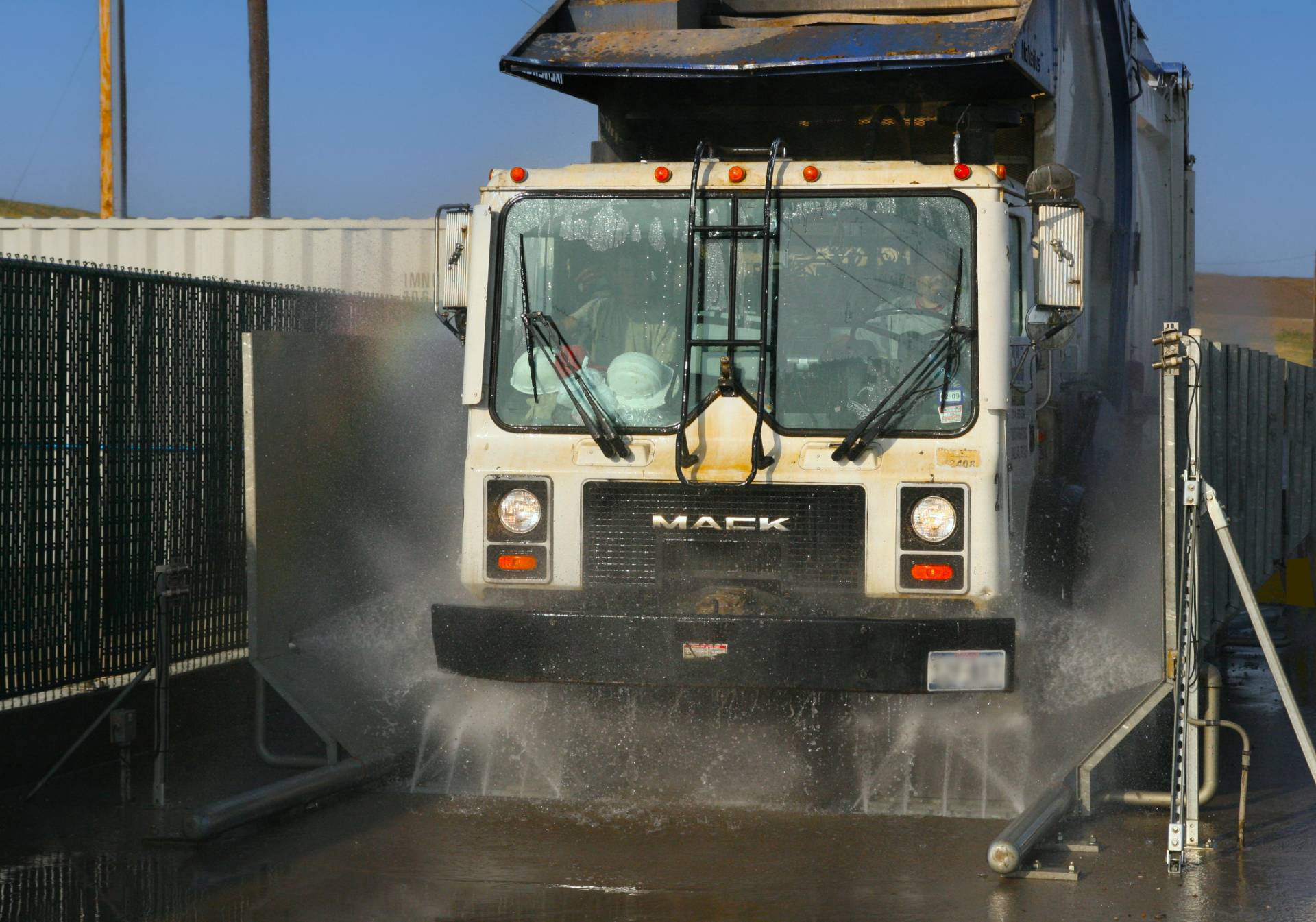

As a leading manufacturer of industrial wash systems, InterClean provides the best wash system for heavy-duty industrial oil and mining vehicles. In addition to heavy duty automatic wash systems and wheel and chassis wash systems, InterClean also offers manual and robotic wash systems. The manual and robotic wash systems accommodate:
- Industrial-sized dump trucks,
- Scrapers, Excavators, Bulldozers, Backhoe Loaders, and other Earth movers
- Extra large tires and chassis used in the mining industries.
These innovative systems offer users absolute directional control over cleaning processes.

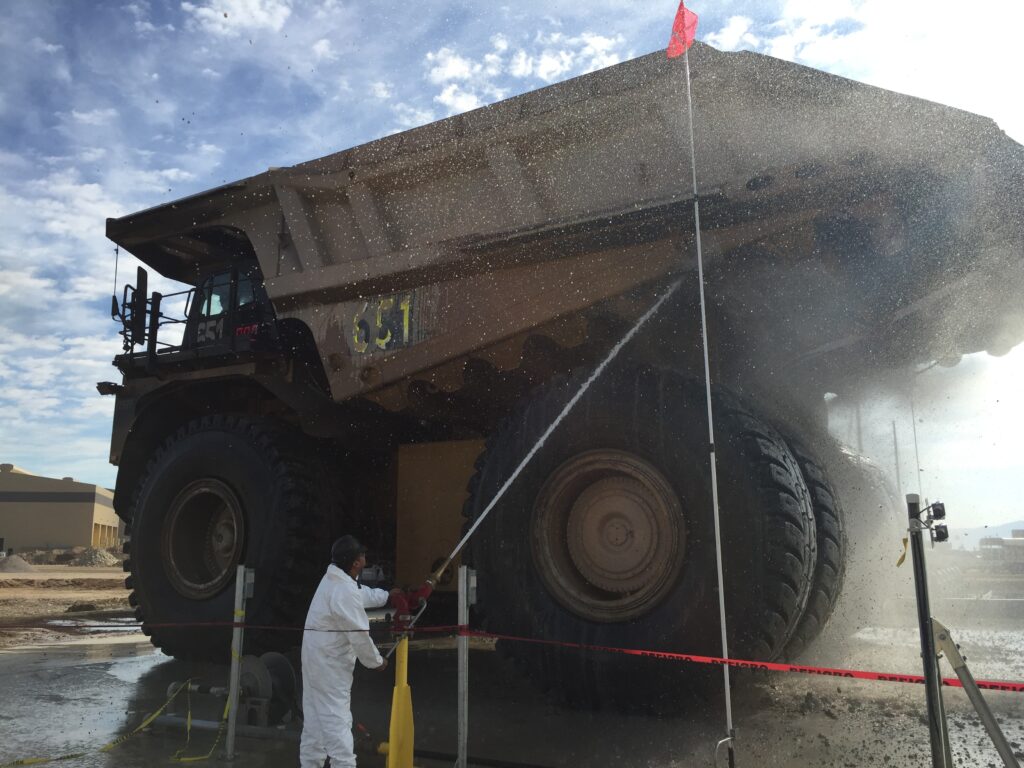

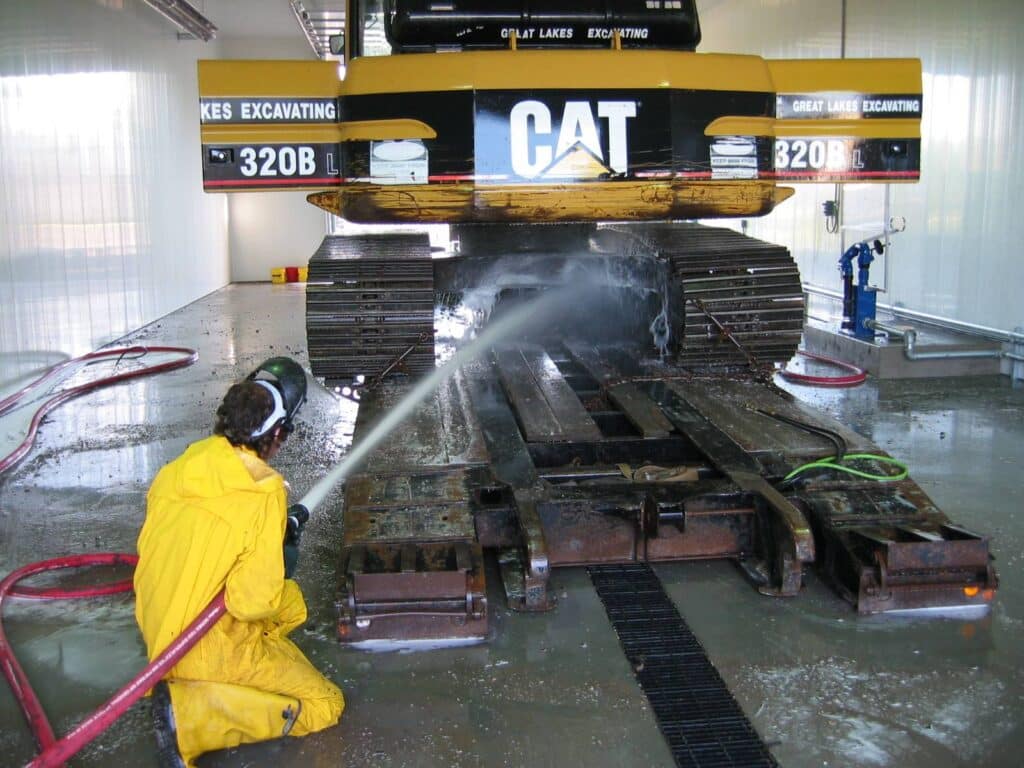

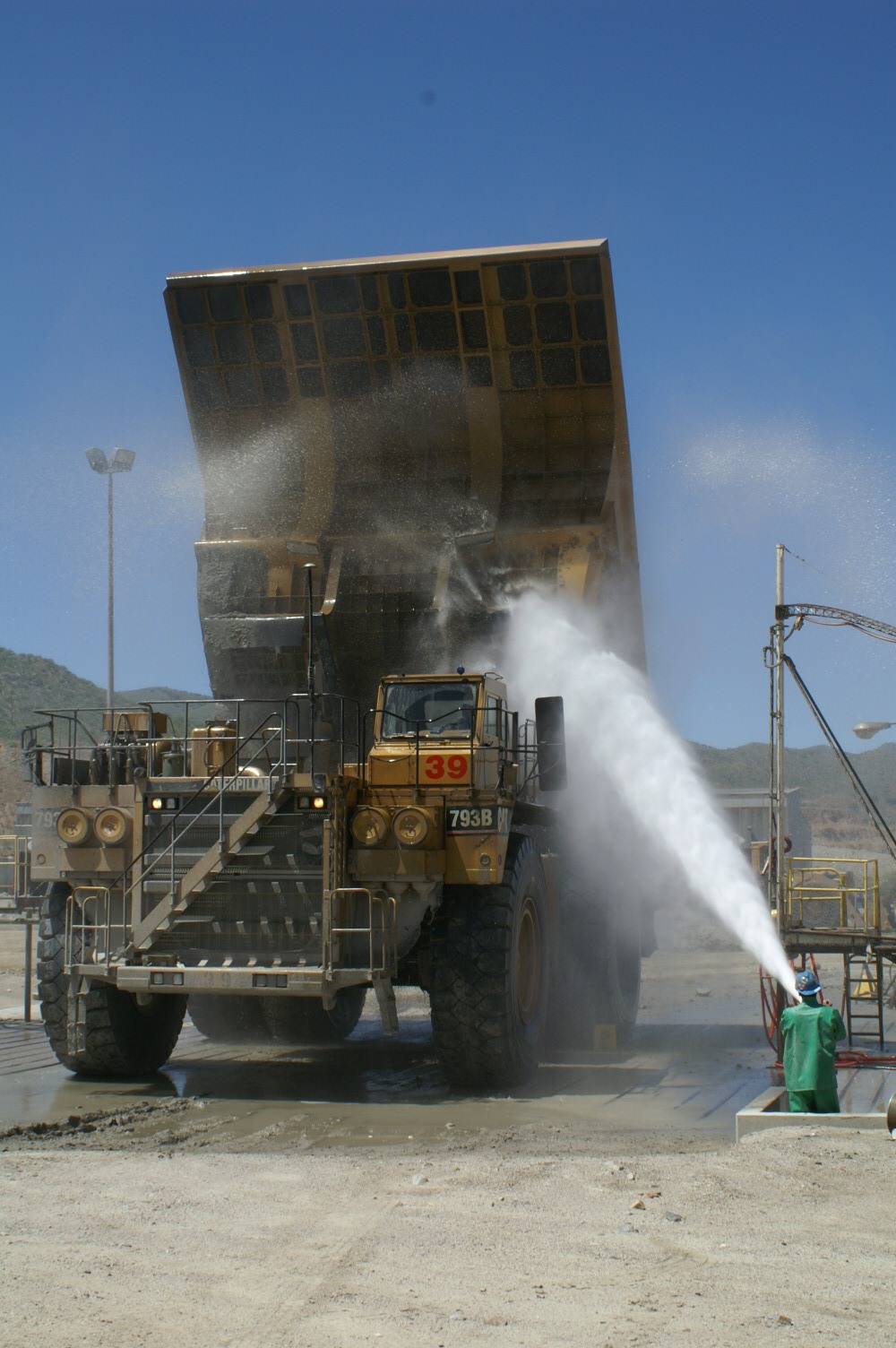

Manual Wash Systems

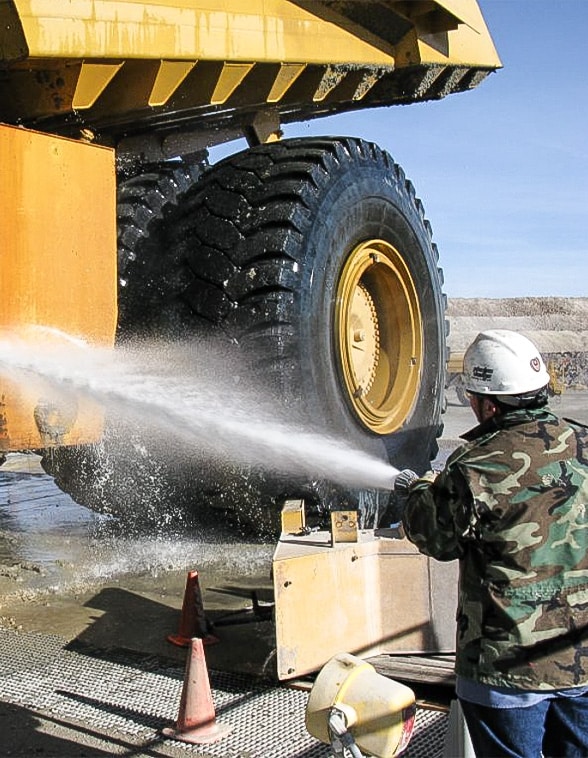

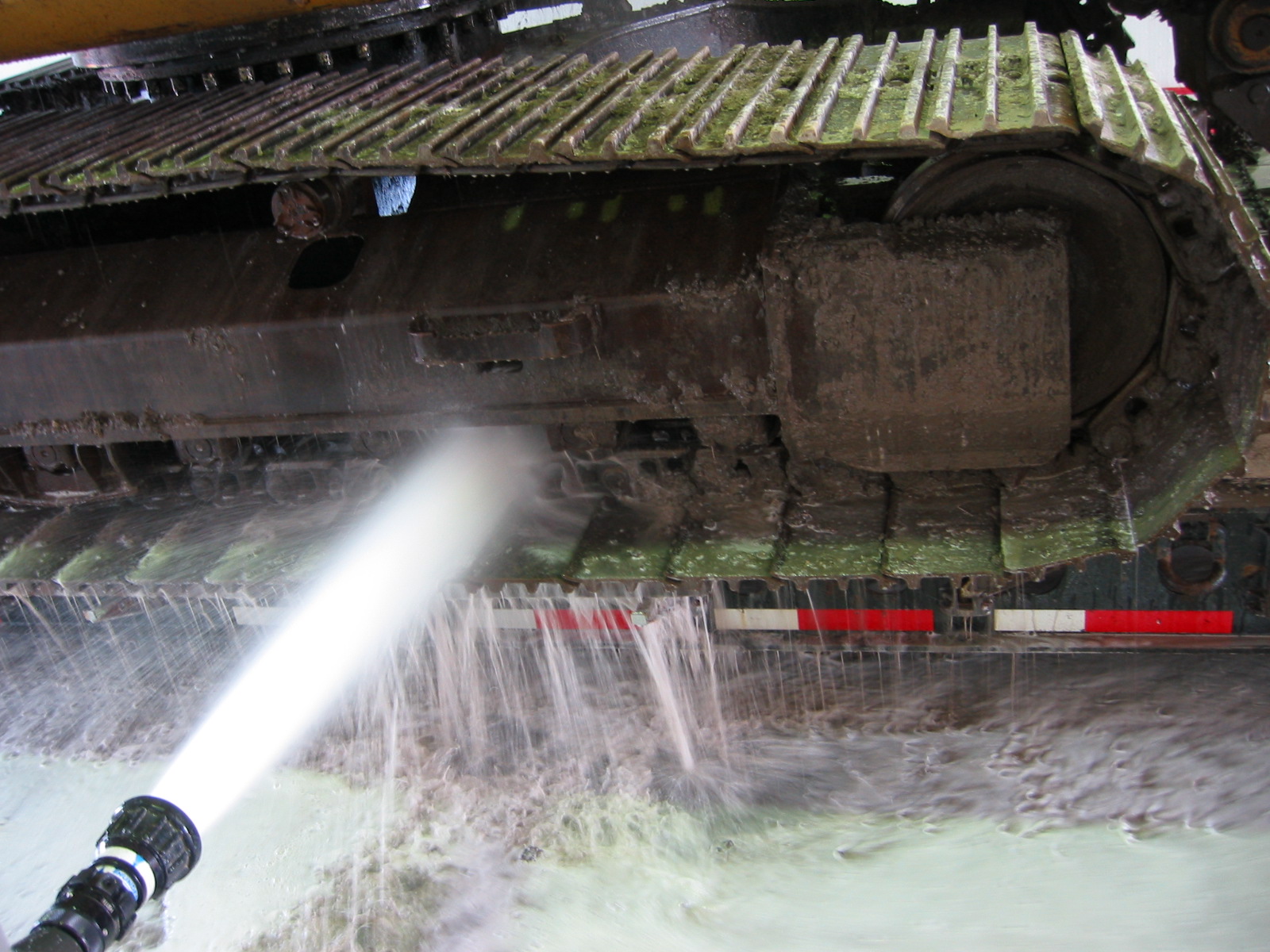

Manual wash systems offer a safer, more effective and economical alternative to standard pressure washers. The high-volume, low-pressure design used by InterClean manual wash systems provides a stream of focused and intense water to maximize cleaning impact and simplify the wash cycle of even the dirtiest mining and oil vehicles.
Designed to quickly remove heavy accumulation of soil/solids from a vehicle in minimal time​, key features of the InterClean manual vehicle and heavy demucking wash systems include:

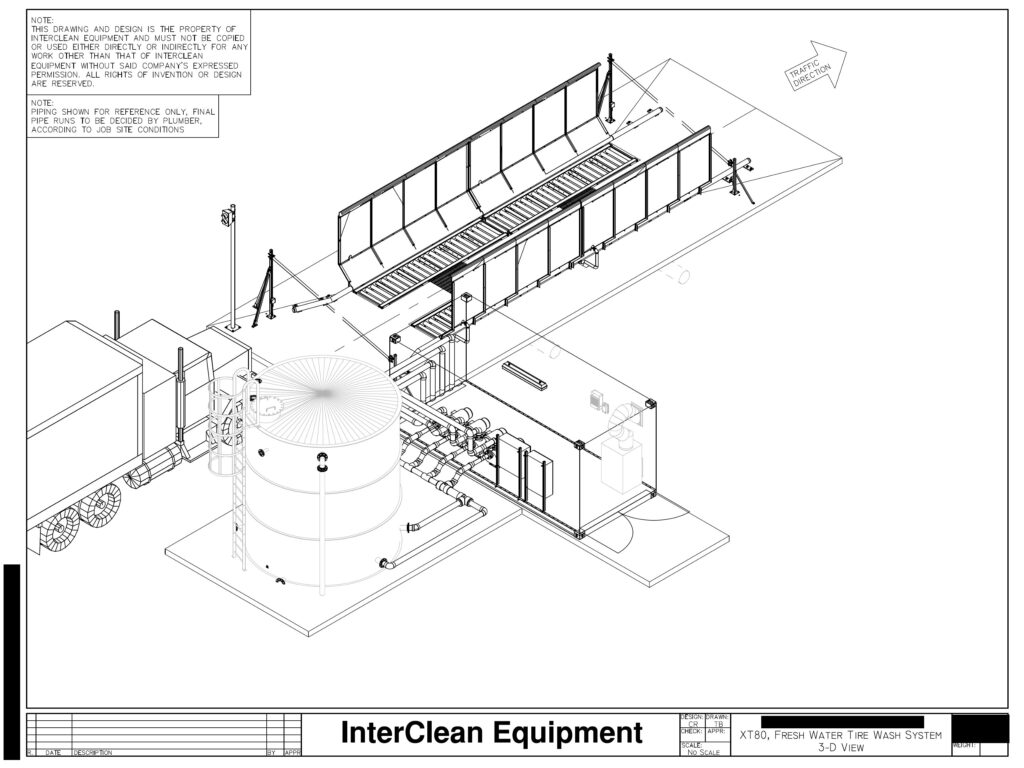

- Skid-mounted EQ100 water recycling system

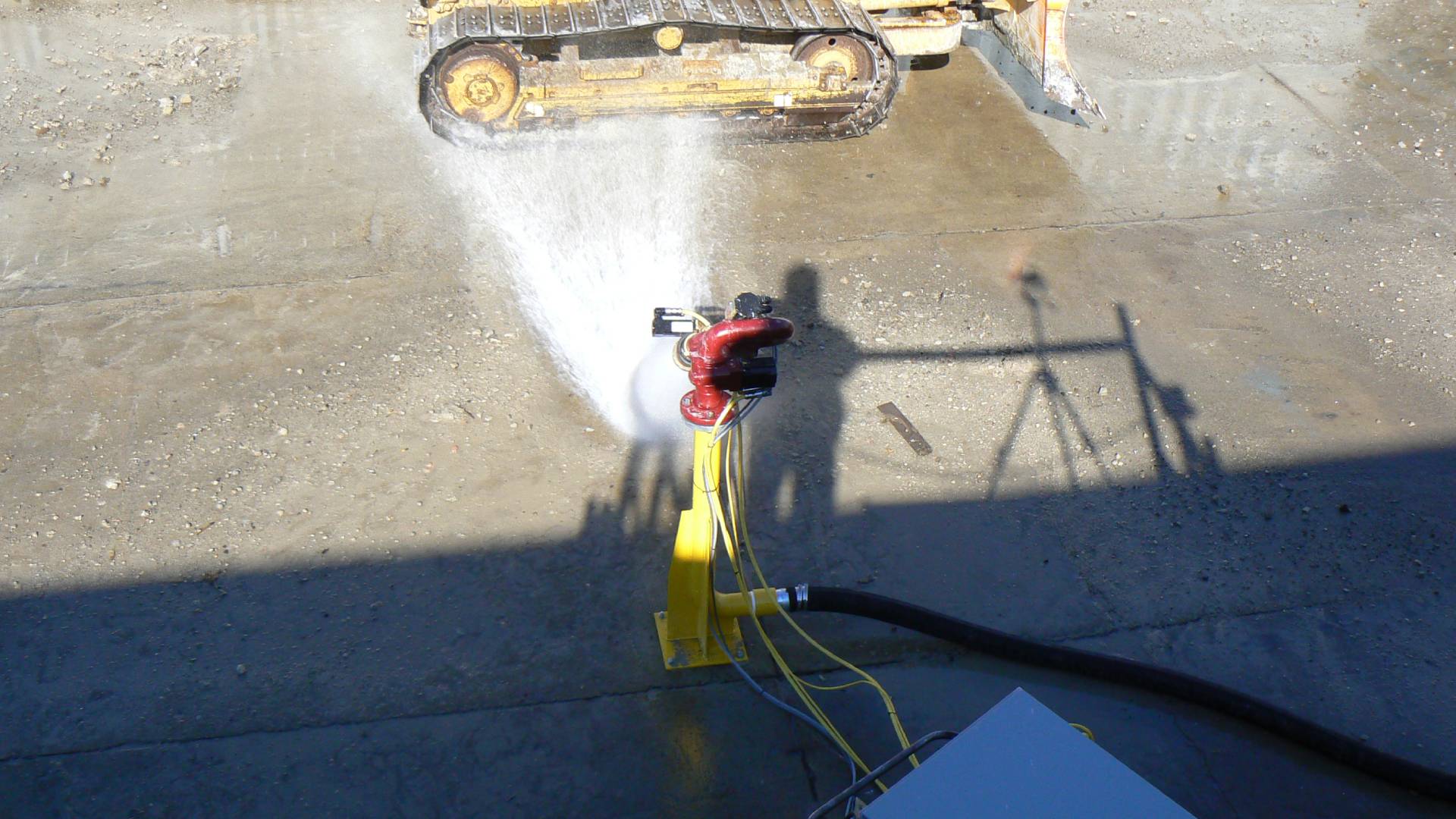

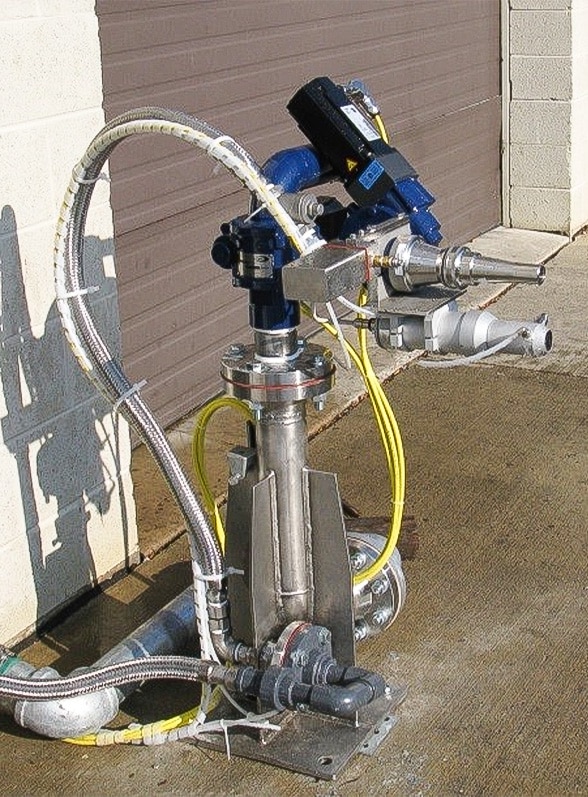

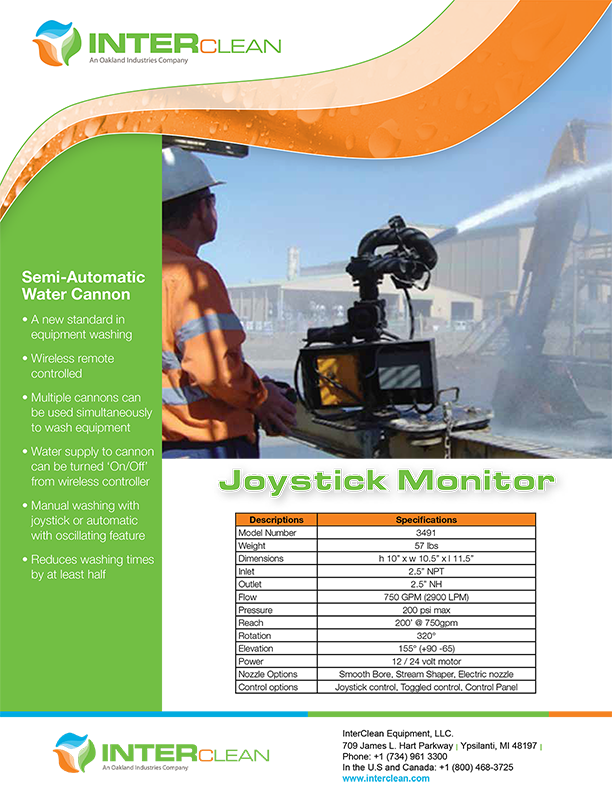

- High-volume adjustable monitors with options for joystick control packages
- Rigid rubber fire hose and reels with adjustable nozzles and spring rewind
InterClean’s manual wash systems rely on efficient and effective wash water recycling through use of the proven EQ100 water recycling module. This water recycling system removes contaminants in the water and allows the manual wash system to recycle up to 90% of wash water. The combined EQ100 water recycling system and high-pressure pump can simultaneously feed up to four hoses.
Our Featured Manual Wash Systems
InterClean offers multiple manual wash system configurations, including:
Wash Boy
- Medium volume hose reel with adjustable flow nozzle
- 5hp pump​

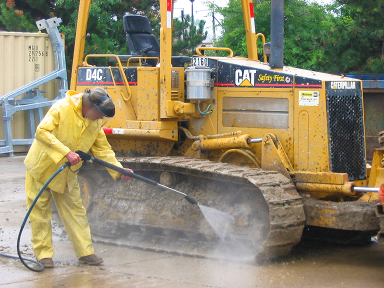

Washman System
- High-volume / low-pressure de-mucking system providing high-pressure water to one or more wash hoses with adjustable flow nozzles, Optional high-volume cannon
- 240GPM 120 PSI
- EQ Module with 30hp​

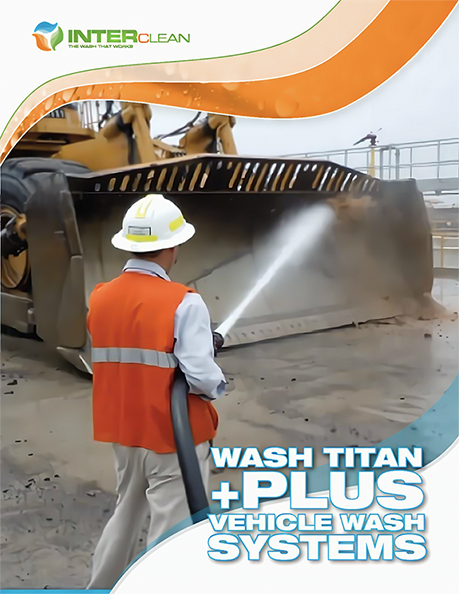

The Wash Titan System
- High-pressure / low-volume hose reel and lance
- 10 GPM @ 1200 PSI
- EQ Module with 25HP pump​

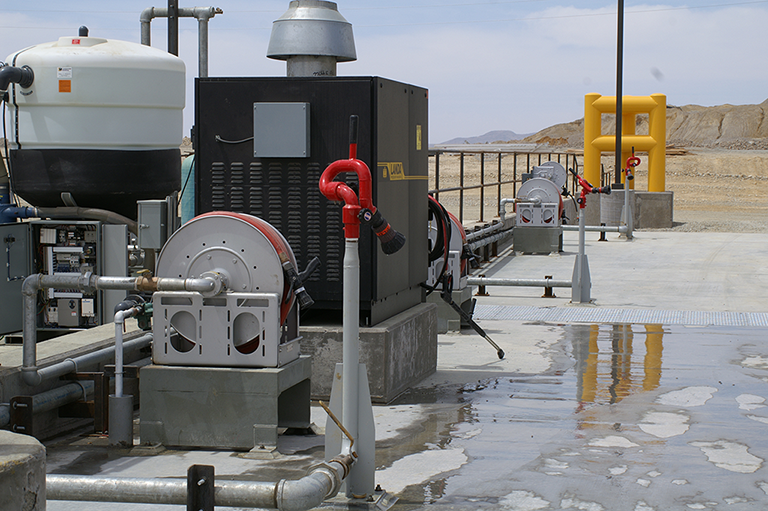

Wash Titan Plus System
- ​(1) 25hp pump
- (1) 30hp pump
- (1) Manual rewind low-pressure hose reels with adjustable flow nozzles / optional high-volume cannon
- 50 feet 1-1/2 inch 200 PSI pistol grip nozzle assembly with adjustable flow rates and angles
- (1) High pressure / low-volume lance, gun, and nozzle.
- (10 GPM @ 1200 PSI) 50 feet high pressure hose and hose reel
- EQ Module water recycling module
Robotic Wash System

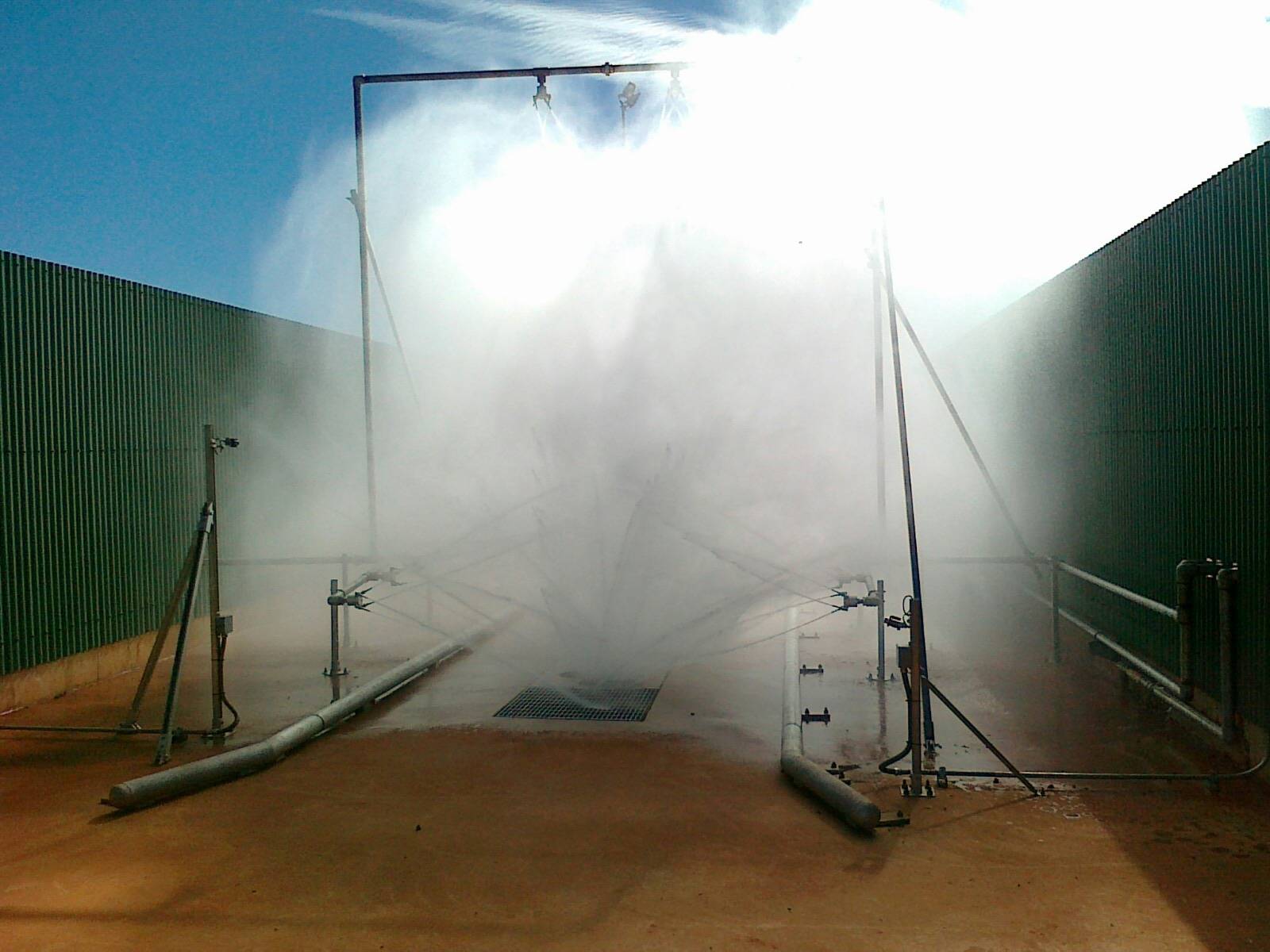

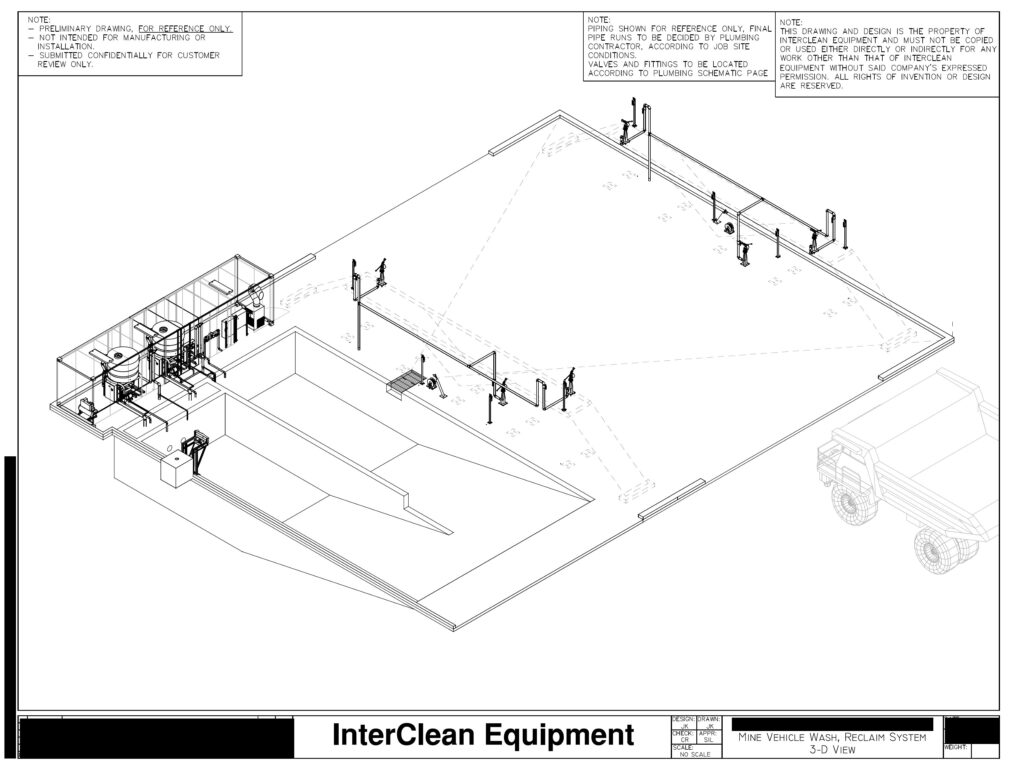

Robotic Wash Systems can clean large, heavy-duty mining vehicles with no personnel in the wash bay for safety reasons. The solution is an entirely automatic, robotic system designed to clean equipment and vehicles with multiple monitors running simultaneously during the wash cycle. Key benefits of the InterClean robotic vehicle wash system include:
- Programming capacity for multiple vehicle types and sizes, capable of washing large vehicles up to 400 ton haul trucks.
- The system can be installed in hazardous locations such as underground mines and underneath vehicles
- The wash system software is designed to recognize the vehicle and wash specifically designated areas while avoiding components of the vehicle that cannot withstand a direct blast from the water cannons.
Previous
Next
Why Use Manual & Robotic
Wash Systems
The InterClean manual & robotic wash systems are state-of-the-art
wash equipment with numerous benefits:
wash equipment with numerous benefits:
Reduce Maintenance Costs
Our high-tech, heavy-duty industrial wash equipment is designed with industrial parts that can withstand the most vigorous washing applications. Mining and oil vehicles can build up a lot of mud and debris that can lead to corrosion and wear on the braking and driveline systems. Thoroughly cleaning mining and oil vehicles is imperative to reducing their downtime, maintenance and operational costs. Our manual and robotic wash systems extend the lifespan of your equipment and help you spend less time and money on maintenance.
Wash & Install Flexibility
At InterClean, we recognize that wash and install flexibility is especially important for the mining and oil industry, where washing needs vary greatly. The types of vehicles you service, the corrosives your vehicles are exposed to, and the water restrictions in your area affect your industrial washing machine requirements. InterClean is a leader in innovation and we offer custom solutions to meet your industrial washing needs. Whether you’re concerned with water consumption, flexible operation, or easy installation, InterClean is here to help.
Improve Safety
When it comes to cleaning large, heavy-duty mining and oil vehicles, employee safety is a big concern. InterClean’s robotic wash systems are completely automatic and use multiple monitors that can perform numerous wash duties simultaneously using a combination of high-pressure / low-volume water applications. This automation means no more personnel in the wash bay.
Our manual wash systems use a direct stream for high-pressure applications enabling wash bay attendants to stand further away without sacrificing the effectiveness of a high-pressure wash. Using relatively low pressure, under 300 PSI, at high volumes to remove the soiling buildup is also a much safer method than the ultra high pressure wands operating at 10,000 -20,000 PSI.
Efficient Wash Solution
Mining and oil vehicles perform in extreme conditions and require routine maintenance to operate safely and efficiently. Before maintenance, equipment must be thoroughly cleaned, which can take up to 8-15 hours. Our robotic wash systems for mining and oil provide a high-quality wash in significantly less time, so you can get your vehicles back to work faster.
Partner With InterClean for Your Next Wash System
Revolutionize your vehicle wash process by investing in a wash system that meets your needs. Fill out the form and learn how InterClean can help make your vehicles shine like new.
1 (800) 468-3725Frequently Asked Questions
Between manual and robotic wash systems, there are a variety of customization options that may work best for your fleet and facility. If you’re committed to a cost-effective, safe, and efficient system, you can’t go wrong with any of our options. Contact our product experts today, so we can help you design a wash system that meets your specific needs.
Absolutely. All of our wash systems are compatible with the EQ100 water recycling system.
InterClean has a variety of detergents that you can use for your specialty wash system, including:
- Â InterPower Brush Lube
- Â InterPower Spray Shine
- Â InterPower Defoamer
- Â InterPower Deodorizer
- Â InterPower Thunder X-Treme
- Â InterPower Fast Bug
- Â InterPower Wheel Shine
These biodegradable, environmentally-friendly detergents are specially designed for InterClean equipment, to ensure healthy equipment life. If desired, our systems also support the use of outside vendor-supplied chemicals.
