AUTOMATIC FRICTION WASH SYSTEMS

Maintain the appearance of your transit vehicles with InterClean’s line of automatic friction systems.

About Our

AUTOMATIC FRICTION WASH SYSTEM

The InterClean XJ Series is a line of effective drive-through friction vehicle wash systems designed specifically for heavy-duty transit vehicles. Each friction vehicle wash system delivers a reliable cleaning solution for public transit and school buses, combining a high-pressure rinse with advanced friction-based cleaning technology for a thorough, efficient, and consistent result.

As a highly customizable heavy-duty transit vehicle and truck wash, InterClean’s XJ Friction Vehicle Wash System is engineered to service a wide range of vehicle types, including:

This versatile friction wash system ensures a high-quality, full-service wash that adapts to each fleet’s unique needs.

INTERCLEAN’S MODERN BRUSH DESIGN

All InterClean XJ automatic friction wash systems feature a modern brush design. This design offers the flexibility of using either a brush or a touchless option to wash the front surfaces, then wraps the brushes around the vehicle’s rear to ensure complete surface cleaning.

Chasing Wrap Brushes

The rear brushes are designed to “chase” the back of the vehicle, rather than swipe at the surfaces, cleaning the rear of the vehicle in an overlapping pattern as it moves through the wash.

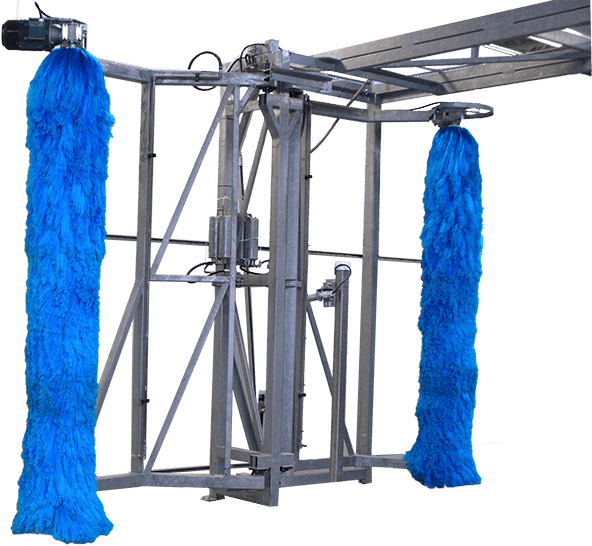

Brush Structure

The XJ friction automatic vehicle wash system features even pressure from brushes supported at both the top and bottom. Combined with the quick friction cleaning action of the chasing wrap brushes, these key design elements effectively clean vehicles. Compared to traditional friction wash equipment, this advanced design provides superior cleaning power while reducing the amount of detergent required per wash.

Fixed top and bottom mounts ensure that even pressure is applied along the entire brush.
The robust galvanized or stainless steel frame is designed for years of continuous operation.
The brush pressure, or "crush,” is adjustable and controlled by air over oil cylinders, providing smooth fluid movements.

InterClean XJ Brush Modules
(standard applications)

XJ 402

(Rear Wrap)

Drive Through, Two Brush Wash

(2) brushes clean the sides of the vehicle then “wrap” to clean the rear surfaces.

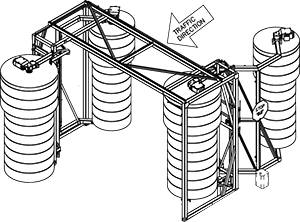

XJ 404 FF

(Fixed Front)

Drive Through, Four Brush Wash

(2) front brushes remain fixed, used only to clean the sides of the vehicle. (2) rear brushes “wrap” to clean rear surfaces.

XJ 404 FW

(Full Wrap)

Drive Through, Four Brush Wash

(2) brushes clean the sides of the vehicle then “wrap” to clean the rear surfaces.

InterClean RAPID XJ Bus Wash

The RAPID XJ 404 Bus Wash

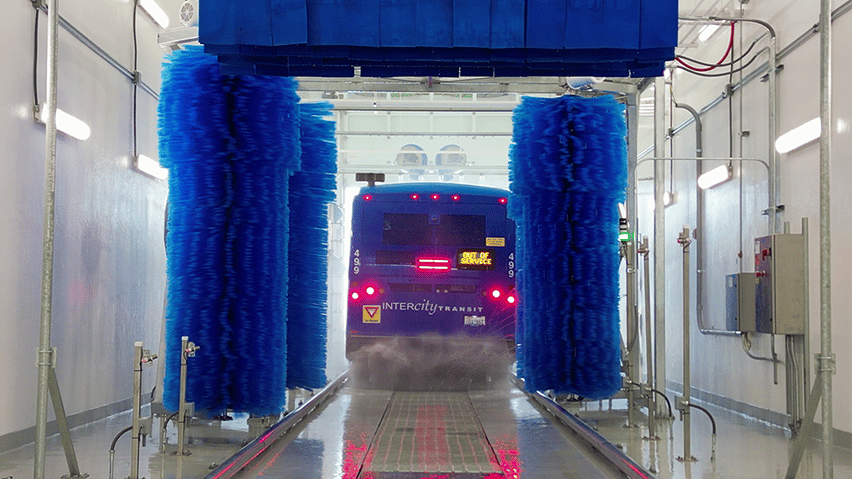

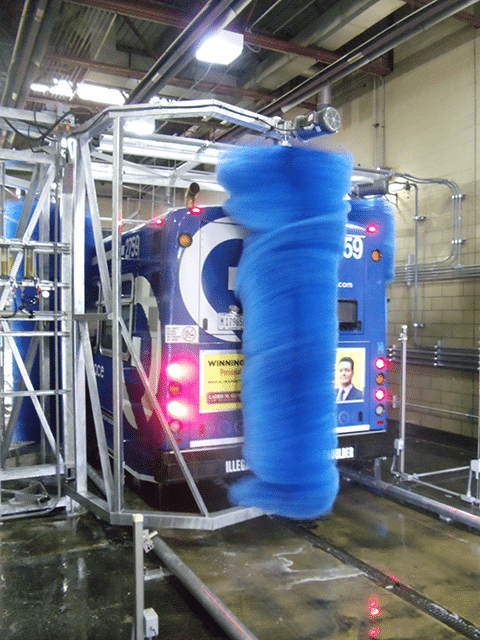

Rear view of The RAPID XJ 404 Bus Wash

XJ Bus Wash Rear Wrapping Acttion

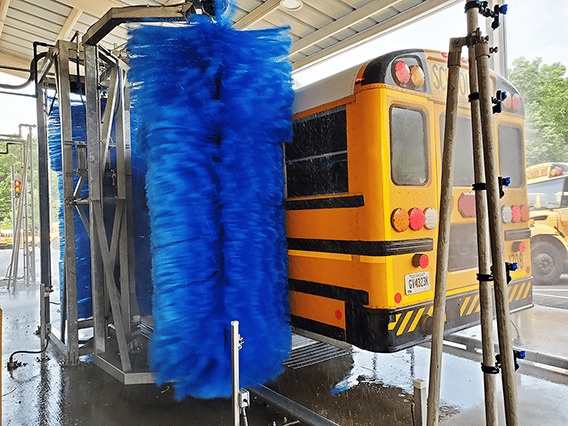

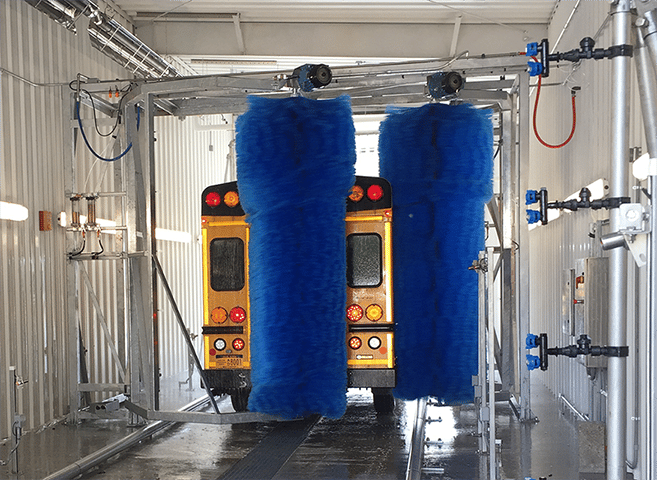

XJ 404 Rear View of a School Bus Wash

XJ 404 Side View of a School Bus Wash

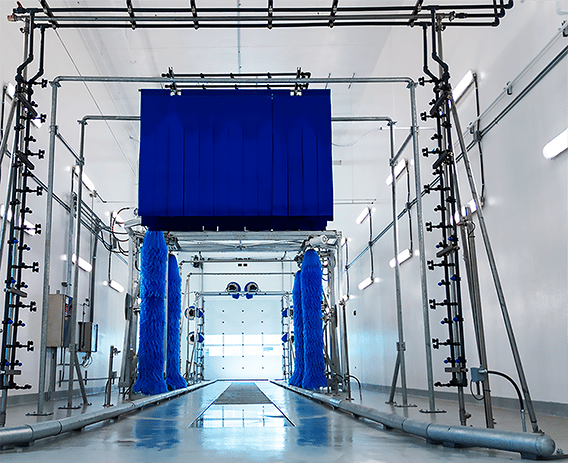

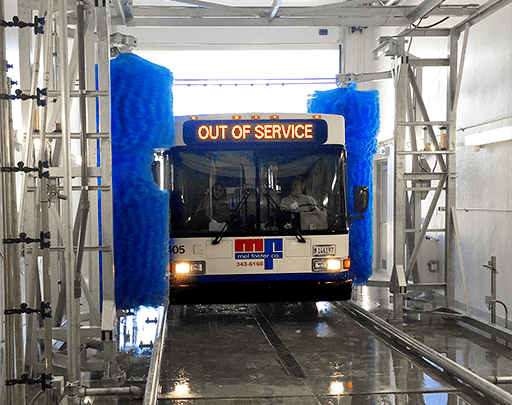

InterCity Transit Bus Wash by Interclean

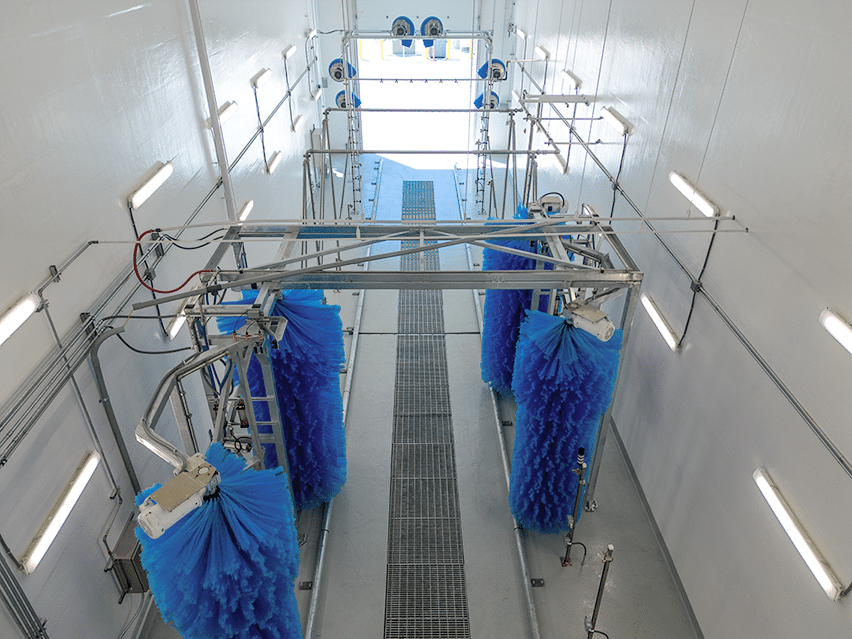

InterCity Transit XJ 404 Friction Bus Wash

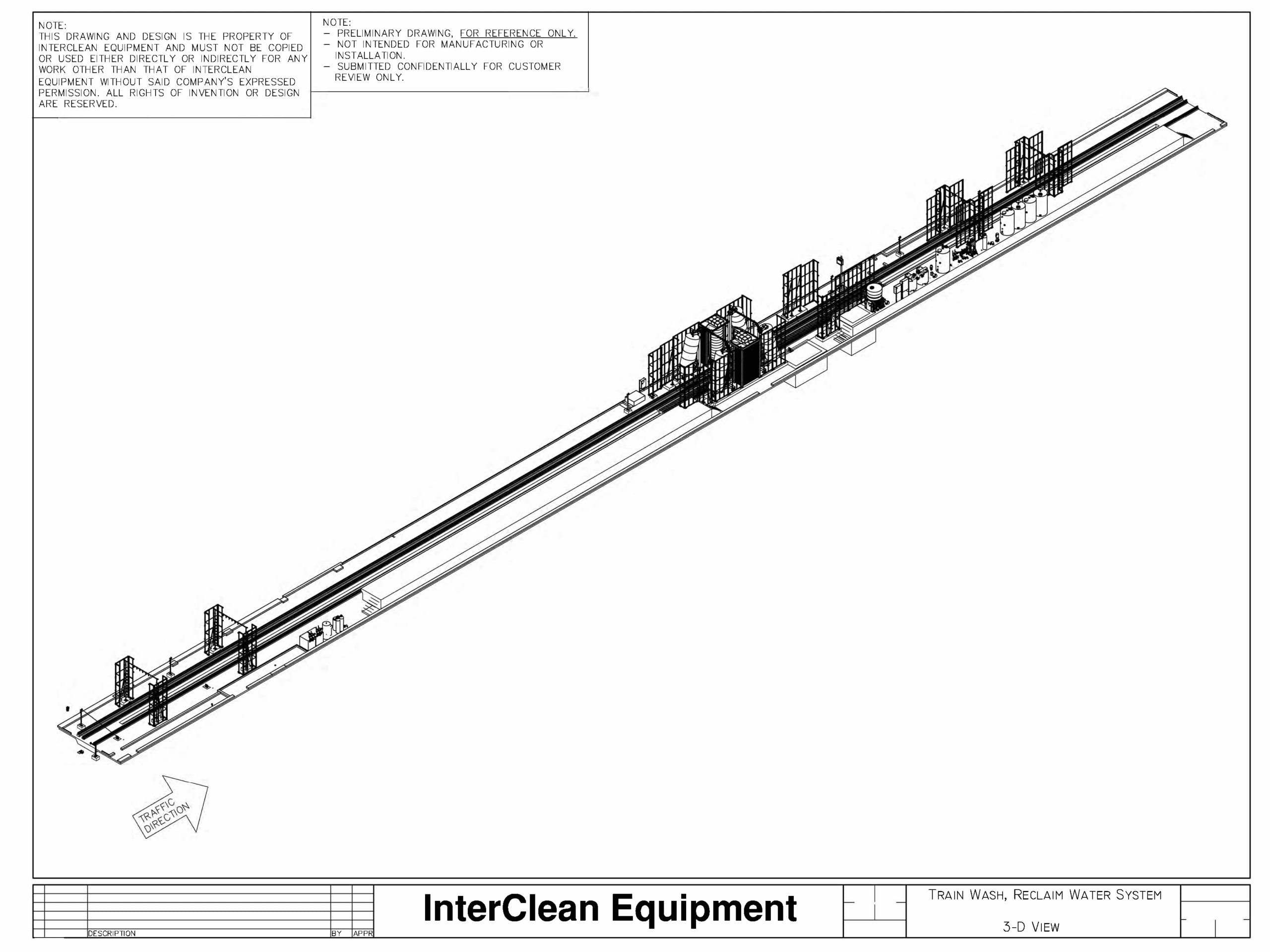

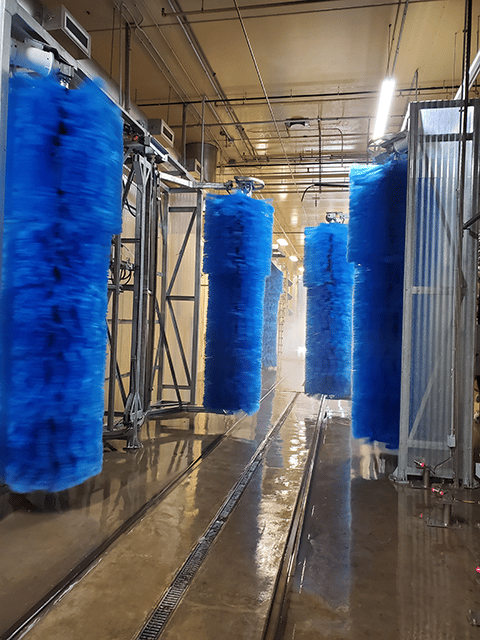

XJ 1000 Train Wash Brush Modules

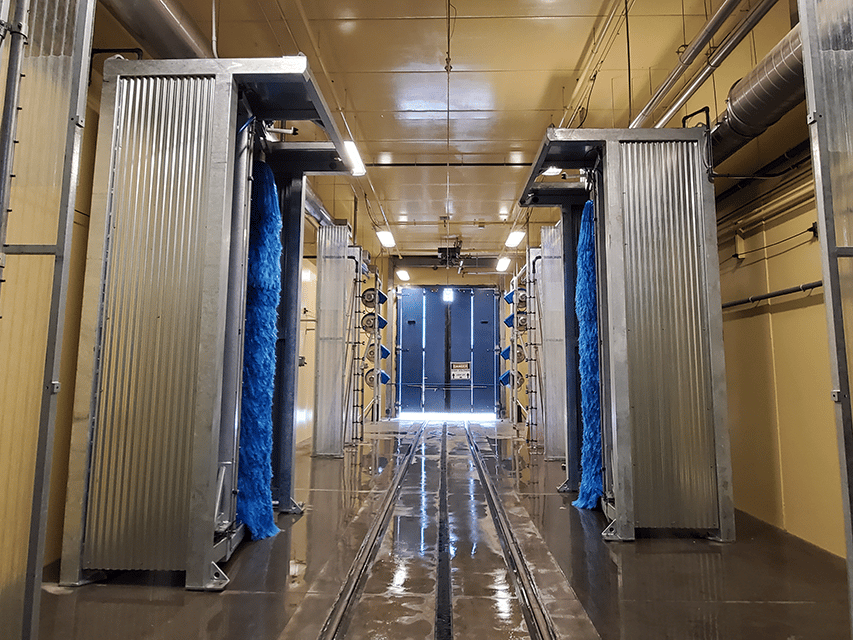

XJ 1000 Train Wash

BENEFITS OF AUTOMATIC FRICTION VEHICLE WASH SYSTEMS

Friction vehicle wash systems offer numerous advantages, making them a superior choice for effective vehicle cleaning.

Advanced Cleaning Performance

Through direct contact with the vehicle surface, friction vehicle wash systems deliver exceptional cleaning results. The advanced brushes and materials actively remove dirt, grime, and road film, ensuring a thorough clean.

Increased Protection for Vehicle Finishes

Modern friction wash brushes are designed with materials that minimize the risk of scratches or damage. This friction wash equipment provides a safe and consistent clean.

Enhanced Speed and Efficiency

Unlike touch-free systems, friction vehicle wash systems deliver quicker cleaning cycles in the bay, without compromising quality. This increased throughput allows more vehicles to be cleaned, boosting productivity and profitability.

Wash Applications

The XJ Series of automatic friction vehicle wash systems can be equipped with either 2 or 4 brushes, with optional single-brush add-ons available.

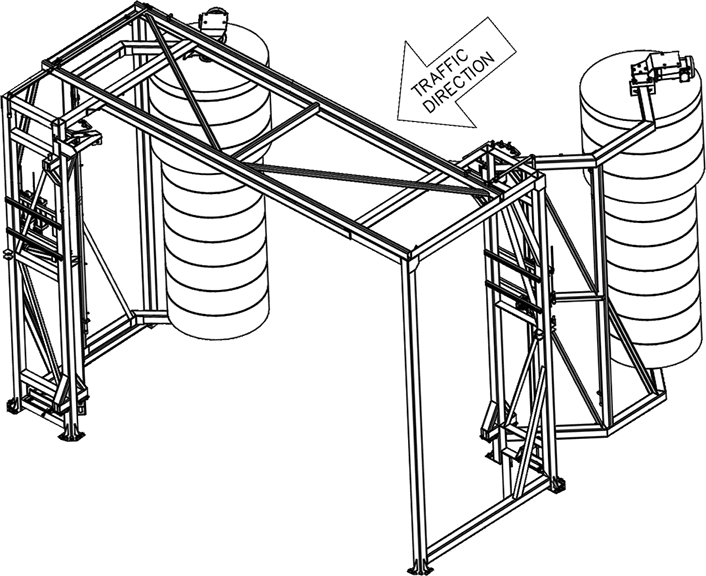

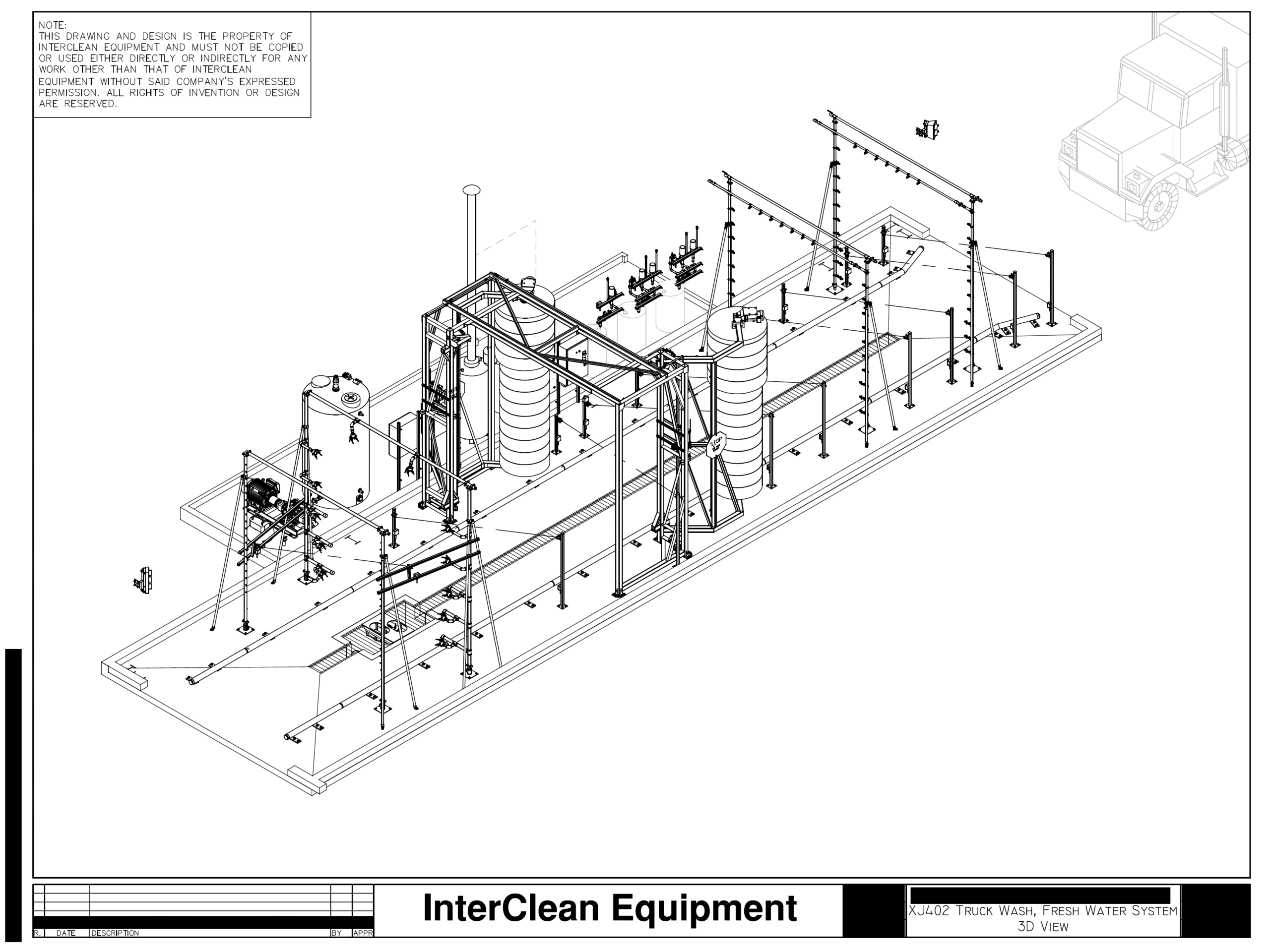

XJ 402

Drive Through, Two-Brush Wash

Independently controlled brush modules on each side are powered by proximity sensors and air-over-oil cylinders, ensuring precise movement and consistent pressure along the vehicle’s sides.
Brushes wrap around to clean the rear surfaces thoroughly.

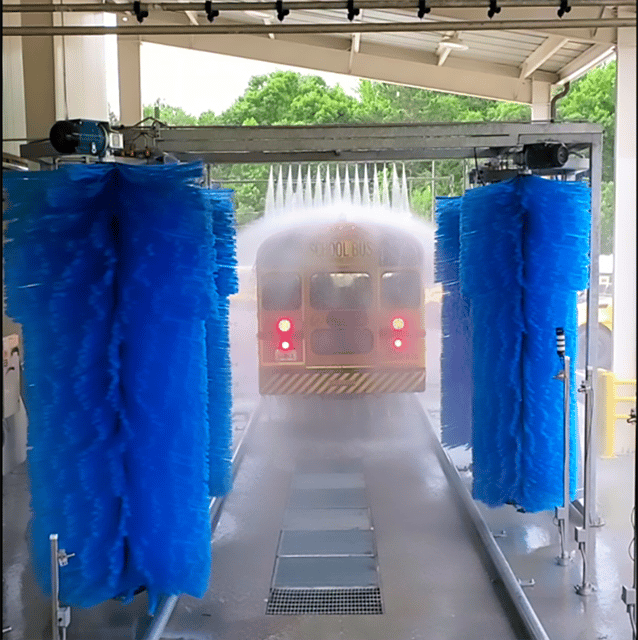

Front surface cleaning can be achieved using V-Spray or Centri® Spinner spray arches.

Click Here

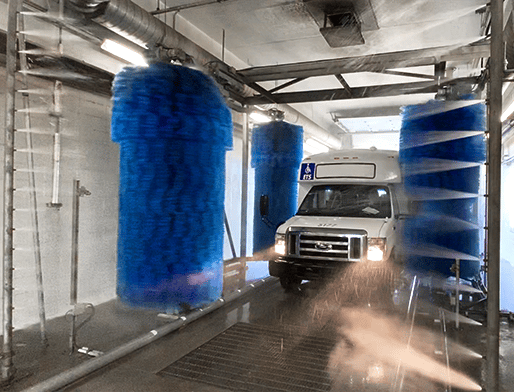

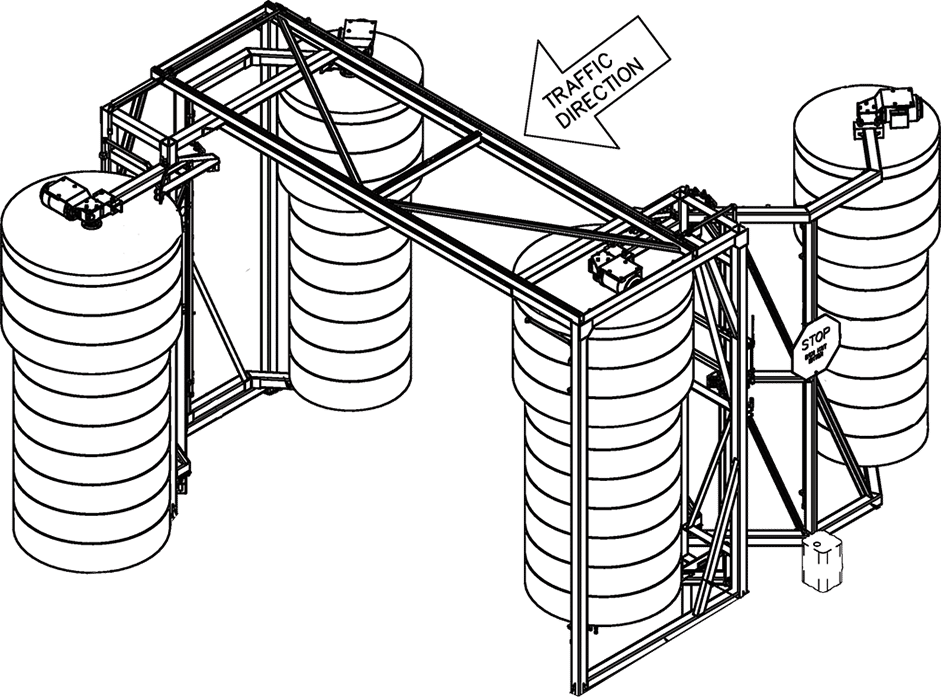

XJ 404 FF (Fixed Front)

Drive Through, Four-Brush Wash

Front brushes are fixed in position to clean the sides of a vehicle or train as it moves through the wash.
Back brush modules wrap around both sides of the vehicle to clean the rear surfaces as it passes by.
Touchless high-pressure front spray cleans the windshield and front surfaces.

Click Here

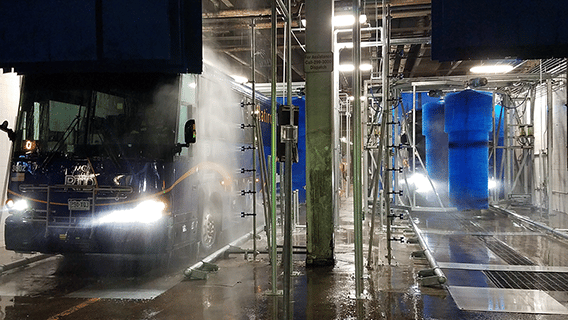

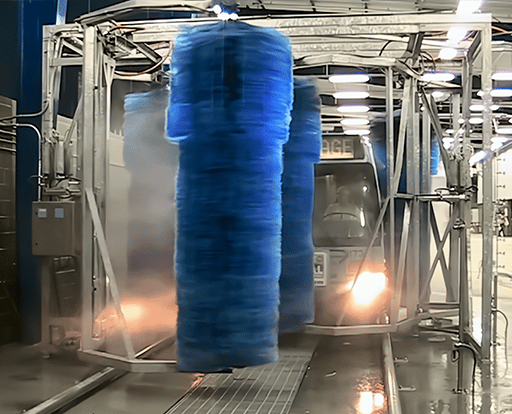

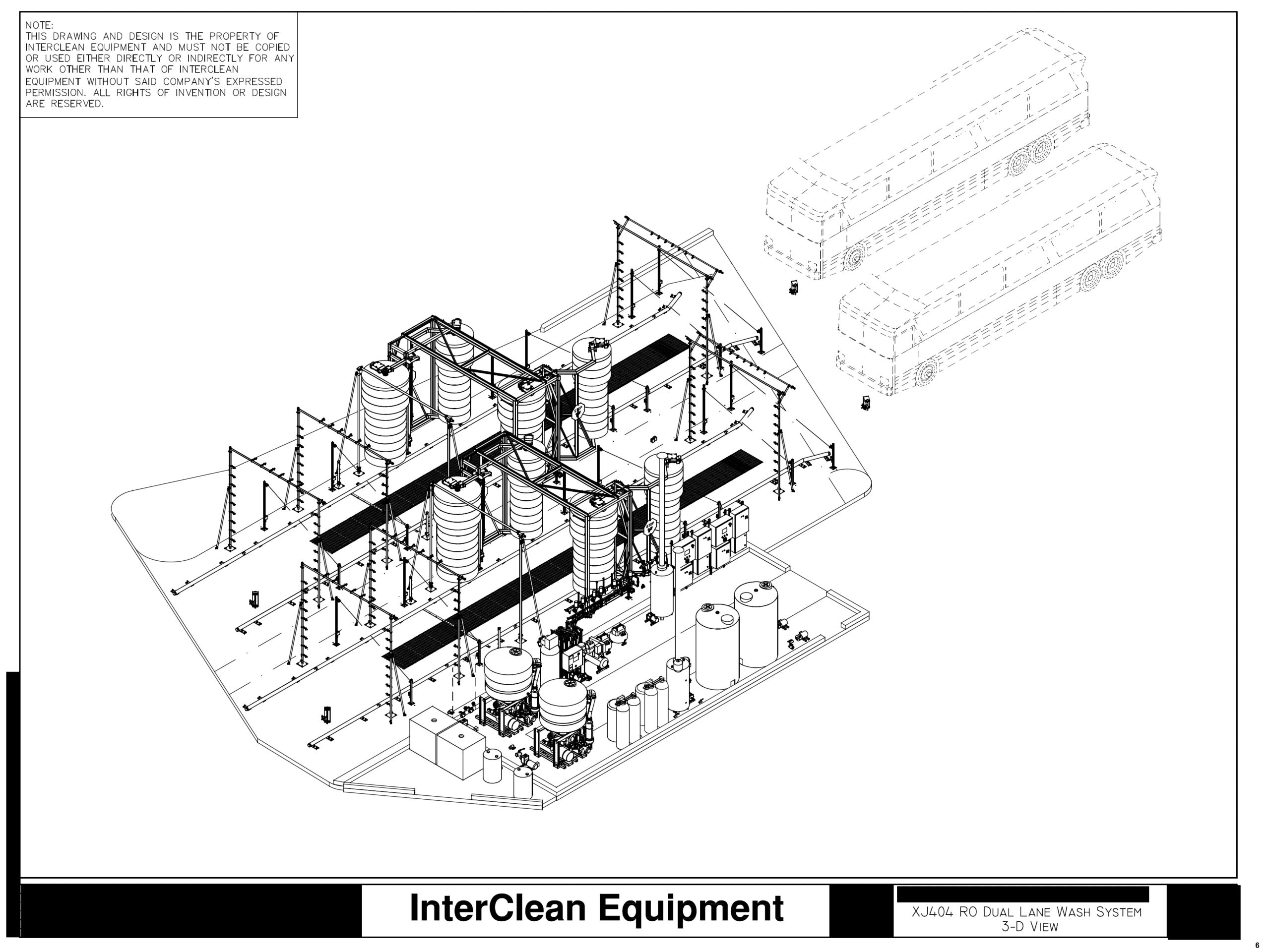

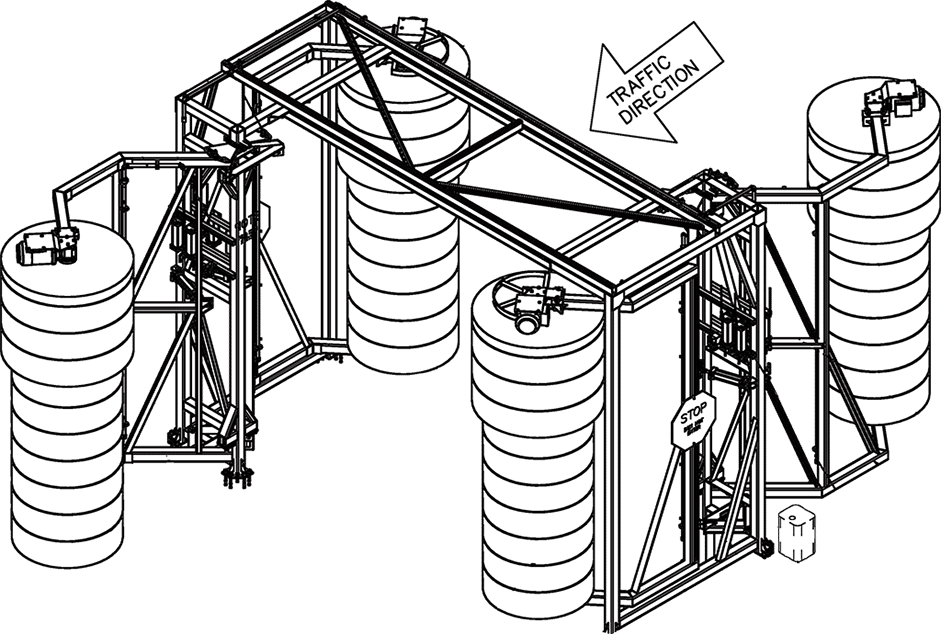

XJ 404 FW (Full Wrap)

Drive Through, Four Brush Wash

Capable of brushing the front, side, and rear surfaces of a vehicle or train.

Front brushes position themselves in front of the approaching vehicle, scrub the windshield, then clean the other forward-facing front surfaces with gentle yet effective friction.
Front and rear brush modules clean the vehicle's sides as it proceeds through the wash.
Rear brush modules wrap around the back corners to thoroughly clean the rear surfaces.

Click Here

HSA 1000 Brush Modules

The HSA 1000 bush modules are single-brush units that can be integrated into any transit or train wash system for enhanced friction cleaning.

These brush modules are often added to rail and light train wash systems.

Click Here

Why Use InterClean’s Brush Wash System

InterClean’s drive-through automatic friction vehicle wash systems offer many benefits, making them an excellent choice for cleaning various vehicles.

Innovative Brush Design

The double-hung, chasing wrap brushes are a key feature of InterClean’s heavy-duty XJ friction vehicle wash systems. This innovative brush design applies even pressure from top to bottom, ensuring every vehicle receives a consistent and high-quality wash.

The wrap-around action allows the brushes to “chase” the rear surfaces as the vehicle moves through the wash system, reducing total wash time without stopping.

Highly Customizable

The XJ friction wash series offers flexible wash options that work effectively as a standalone transit or train wash, or as a hybrid wash system that uses a combination of brush-based cleaning power and the intensity of our touchless wash applications.

These modules can be further customized with add-on features such as blowers, chassis washers, and water recycling systems.

Sustainable Features

Our XJ friction wash systems can be configured to use recycled water, helping reduce water consumption and operating costs. These systems use the ideal balance of water and detergent to protect your vehicle while supporting a more eco-friendly approach to washing. With our EQ100 water recycling systems, which deliver water volumes of up to 300 GPM, you get the same high-quality cleaning with a fraction of the water usage.

To reduce maintenance, our wash system automatically circulates and aerates the water and includes a self–cleaning stainless steel filter. Each unit comes pre-wired, pre-plumbed, and mounted on a skid for an easy installation.

Custom Engineered

InterClean’s friction brush wash systems are tailored to meet the specific needs of your fleet. When you partner with us to get the right wash system, we carefully assess the vehicle types you maintain, the level of dirt and debris to be removed, exposure to corrosives, local water restrictions, and your budget.

Our thorough evaluation of your requirements ensures you receive a wash system that maximizes cleaning efficiency while minimizing operational costs.

Partner With InterClean For Your Next Automatic Friction Wash System

Invest in a wash system that meets your needs while revolutionizing your vehicle wash process. Fill out the form and learn how InterClean can help make your vehicles shine like new.

1 (866) 905-5458

Contact Us

Facebook

This field is for validation purposes and should be left unchanged.

Name(Required)

Email Address(Required)

Phone(Required)

Company

Country

State/Province/Region(Required)

City

Why are you contacting InterClean today?(Required)

New Wash System: New Project Inquiry, or Information Request

Request Specifications: Written system specifications

Existing Wash System: Parts, Maintenance, Customer Service

Detergent: Order or Information

Other

Additional Info(Required)

Please include any questions, additional details, or information that will help us better respond to your request.

Frequently Asked Questions

How does the brush functionality in the XJ system improve the wash process compared to standard vehicle wash systems?

Generally speaking, standard vehicle wash systems rely heavily on soapy water to remove dirt and debris. Instead, the XJ system uses advanced friction cleaning with brushes supported at the top and bottom. This design ensures even pressure for a gentle yet effective clean. While the system still includes a pre-soap step, the friction movement of the brushes, combined with the in-and-out motion of the brush arms, makes the XJ wash process more efficient, reducing detergent use and enhancing overall cleaning power.

What's the difference between friction vehicle wash systems and touchless wash systems, and which is better for my vehicles?

The right choice depends on your needs. Backed by extensive experience, InterClean offers friction wash equipment, touch-free wash systems, and hybrid solutions that combine touchless spray for hard-to-reach areas with friction car wash technology on the sides and other suitable surfaces.

If you’re wondering which wash system is right for your vehicles and operations, we encourage you to contact us.

What are chasing wrap and double-hung brushes, and how do they improve the wash process?

Chasing wrap and double-hung brushes are unique brush styles used in all XJ models for optimal performance.

Chasing wrap brushes “chase” the vehicle, wrapping around the back to clean the rear surfaces slowly and steadily. By following it for several feet, the brush contact time is increased from 1-2 seconds to 6-8 seconds without extending wash cycle times, enhancing cleaning effectiveness.

Double-hung brushes are secured at both the top and bottom, ensuring consistent pressure across the entire vehicle. This process provides a more thorough and even wash than traditional brushes, which are only secured at the top.

What brush material options are available for the XJ brush wash systems, and how do they affect the wash process?

When optimizing your XJ system, you can choose between two types of brush materials. Plastic bristle brushes, the most common type, are designed to flare out and effectively clean every part of the vehicle. Alternatively, a foam brush is available, which is gentler on the vehicle’s exterior and is ideal for sensitive components, such as bike racks or advertisements/decals.
