BUENAVISTA DEL COBRE
Sonora, Mexico
Location
Cananea, Senora, Mexico
Type
- Open Pit Mine
- On-Site Refinery
Mineral(s)
- Copper
- Silver
- Zinc
Mining Equipment
- Cat® 797F Mining Truck , 363-tonne (400-ton)
- Cat® 325BL Excavator
- Cat® 988B Wheel Loader
- Cat® 924G Wheel Loader
- Cat® 834H Wheel Dozer
- Cat® 824C Wheel Dozer
- Cat® D9N Crawler Tractor
- Cat® Cat® D9R Dozer
- Cat® 16H Motor Grader
- Komatsu PC300 Hydraulic Excavator
- Komatsu D275A-2 Crawler Tractor
- Komatsu D275AX-5 Crawler Dozer
- Komatsu 830E-AC Electric Drive Truck
- Komatsu WD600-3 Wheel Dozer
- Komatsu WA900-3 Wheel Loaders
- Komatsu WA470-6 Wheel Loaders
Wash System
- Haul Truck Wash
- Light Vehicle Wash System
- Water Reclaim Pit and InterScreen Filtration System
Highlights
- 2 Lanes
- Heavy Duty Oil Skimmer
- Water Reclaim Pit
Haul Truck Wash
- 1,600 GPM Front & Rear Spray Towers, 60 PSI
- Floor Mounted High-Pressure Monitors
- Manual Wash Guns with 50' Hose Reels
- 1,600 GPM Chassis Wash at 76PSI
Light Vehicle Tire Wash and De-Mucking
- 1,360 GPM Recycled Water
- Galvanized Splash Walls
- 600 GPM Side Spray Towers
To manage the continuous traffic of Haul Trucks, mining machinery, and light vehicles at the Buenavista del Cobre mine site, InterClean was asked to come up with a plan for on-site wash systems that would run reliably for 12 or more hours per day.
- The Haul Truck wash bay was specifically designed to clean the largest equipment on-site, accommodating vehicles up to 32 feet wide and 24 feet tall.
- Adjacent to it, a wheel and tire wash system was installed to ensure that any vehicles leaving the site were free from dirt and debris.
Previous
Next
The Buenavista del Cobre mine is located in the Cananea, Senora region of Mexico. The expansive open-pit site is mainly dedicated to copper mining, with additional exports of silver and zinc also mined from the region.
Wash System Start-Up (2018)
Project Scope
- High Pressure Side Arches
- Underchassis Wash
- Manual Wash System
- Light Vehicle Tire Wash System
- Traffic Lights
- Activator Controls
- Fill Pipe Assembly
- Guidance Lighting
- Heavy Duty Oil Skimmer
- Water Reclaim & Filtration System
Install and start-up took 2 weeks to complete. Buenavista transformed from a mining site with no structures to having a fully operational maintenance building, a drive through haul truck wash and manual wash bay, light vehicle wash, and a reclaim pit for recycling used wash water.

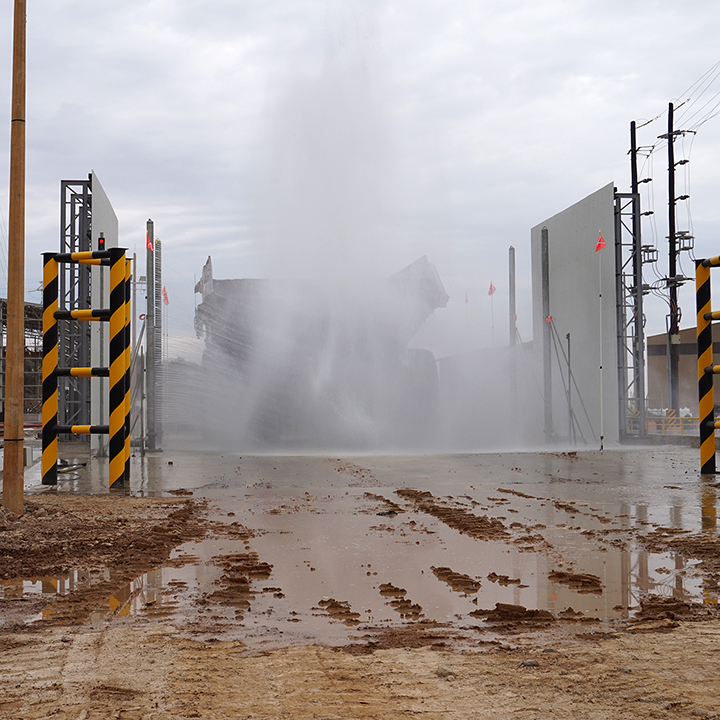

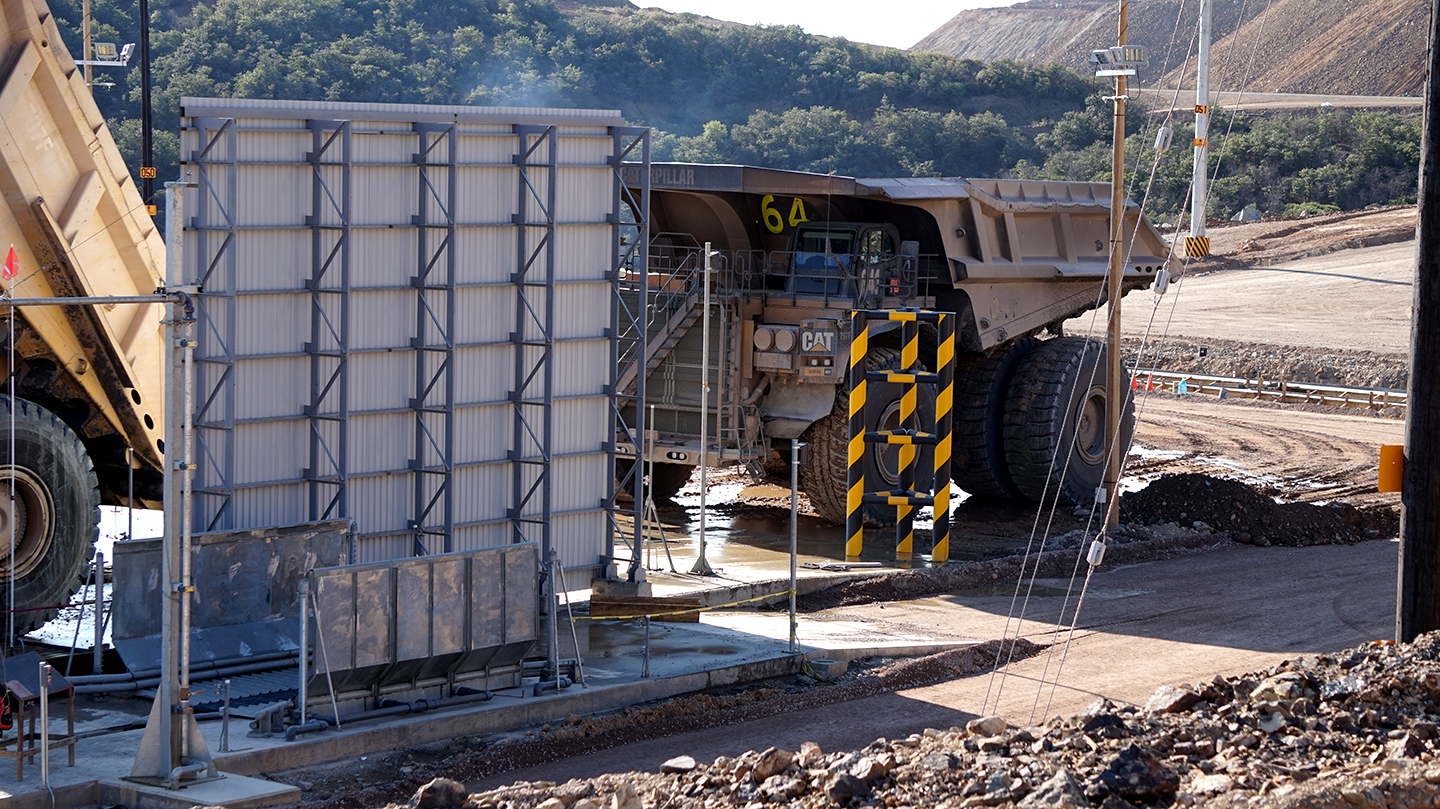

Fully Operational Haul Truck Wash

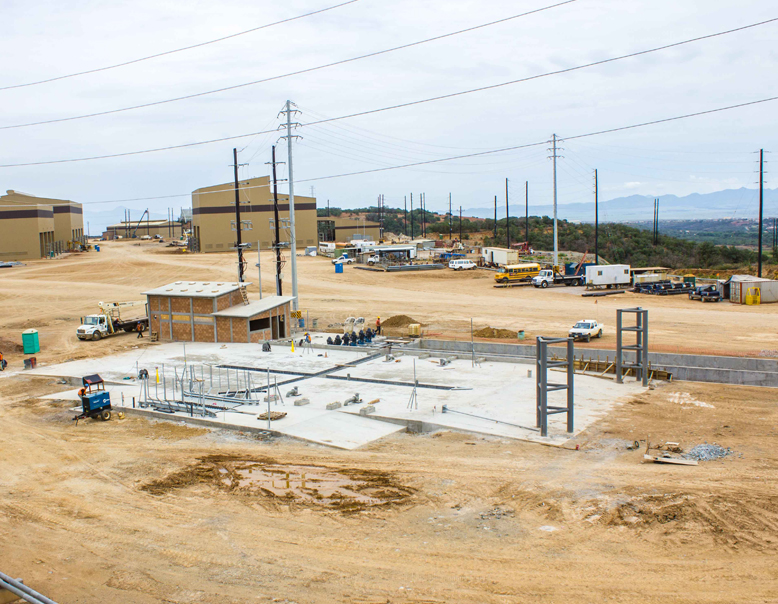

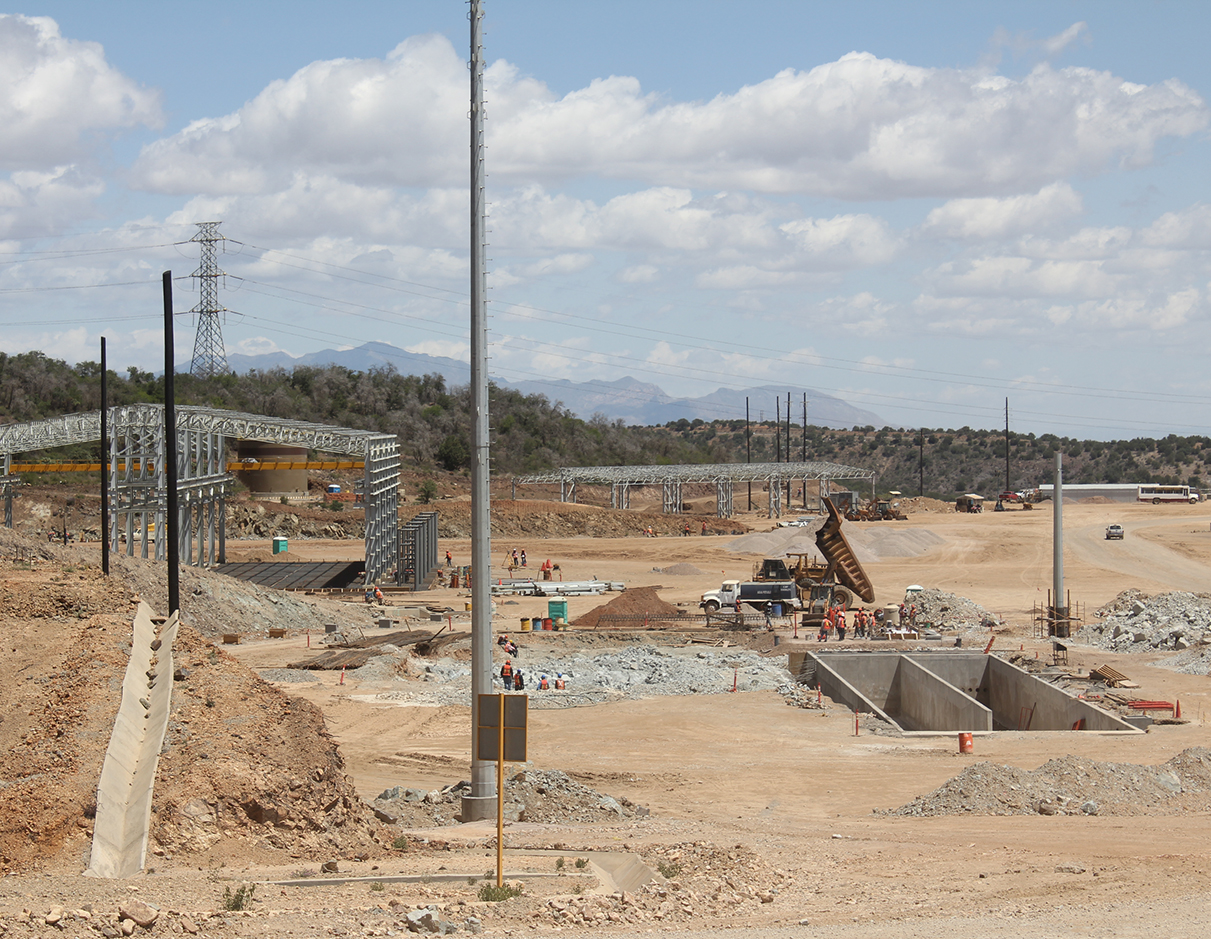

Start of construction

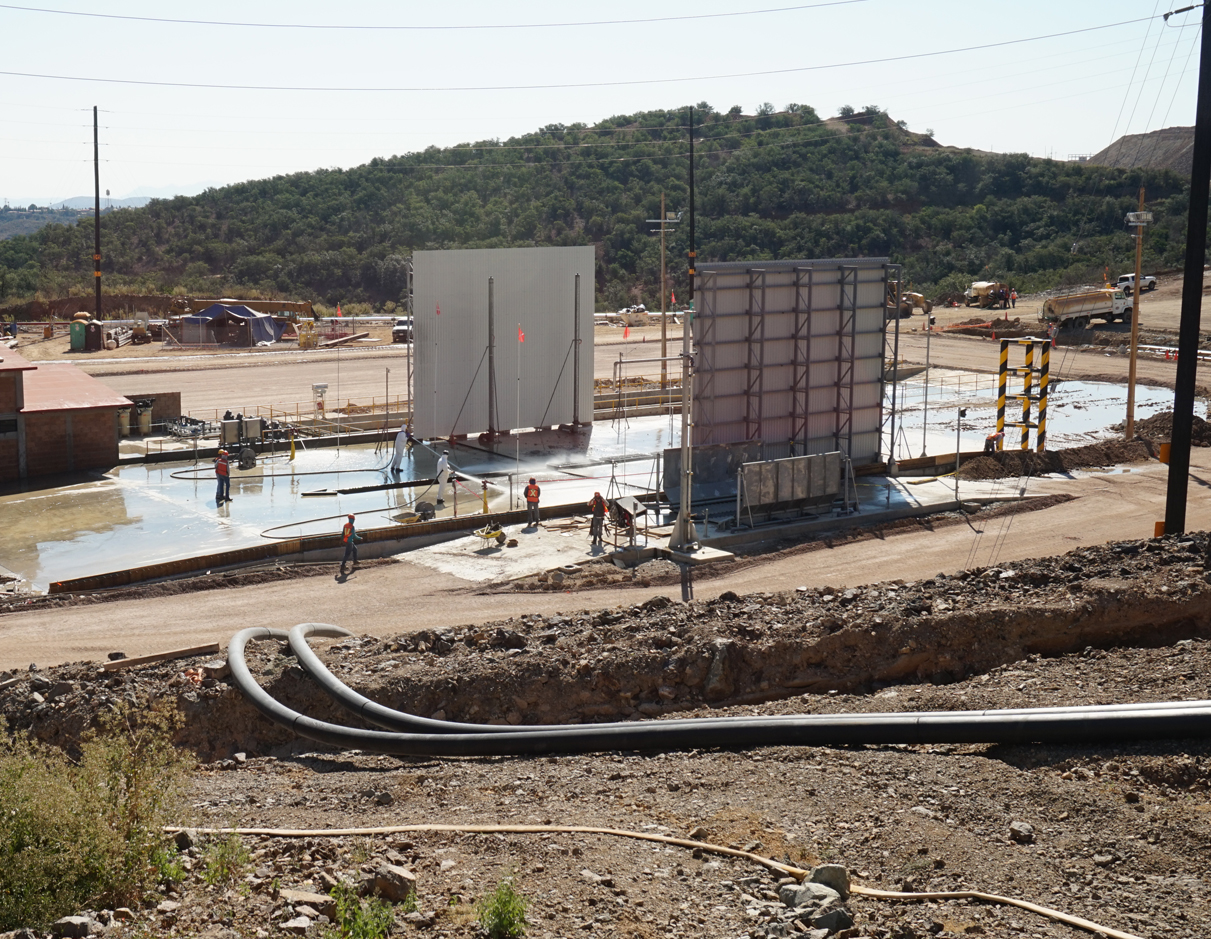

Mid construction - Haul Truck Wash

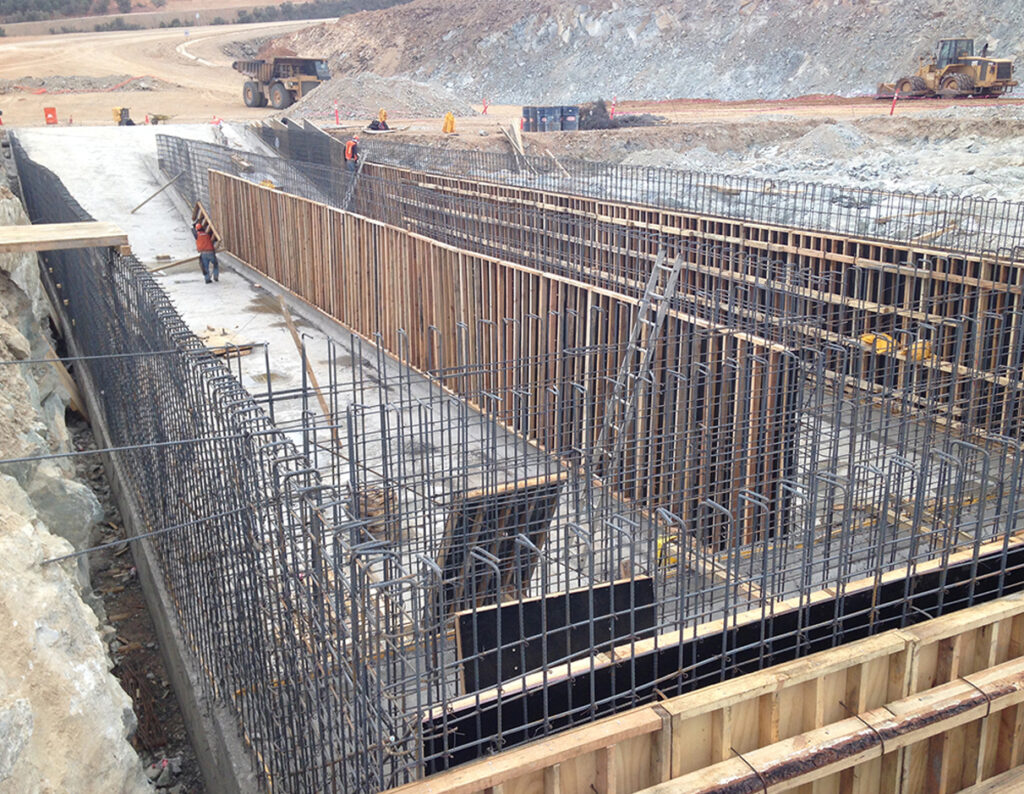

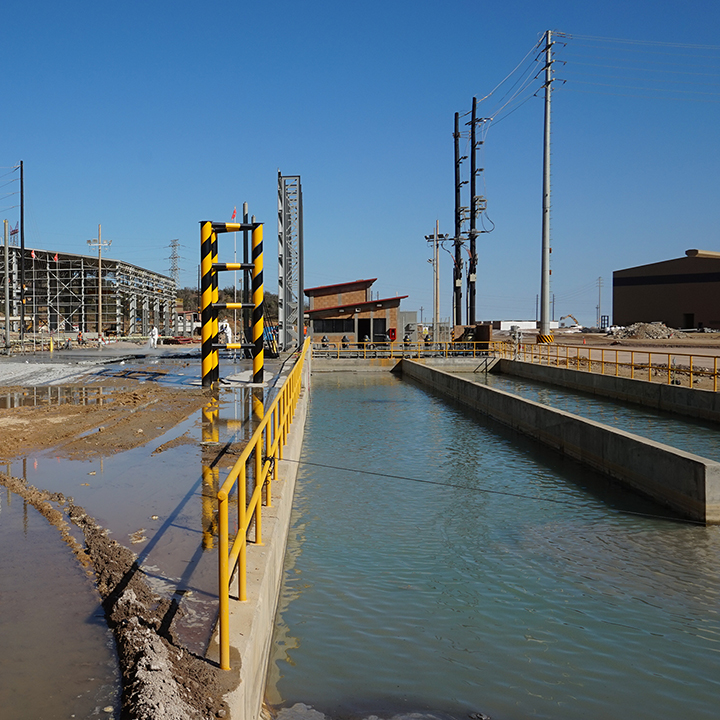

Mid construction - Reclaim Pit

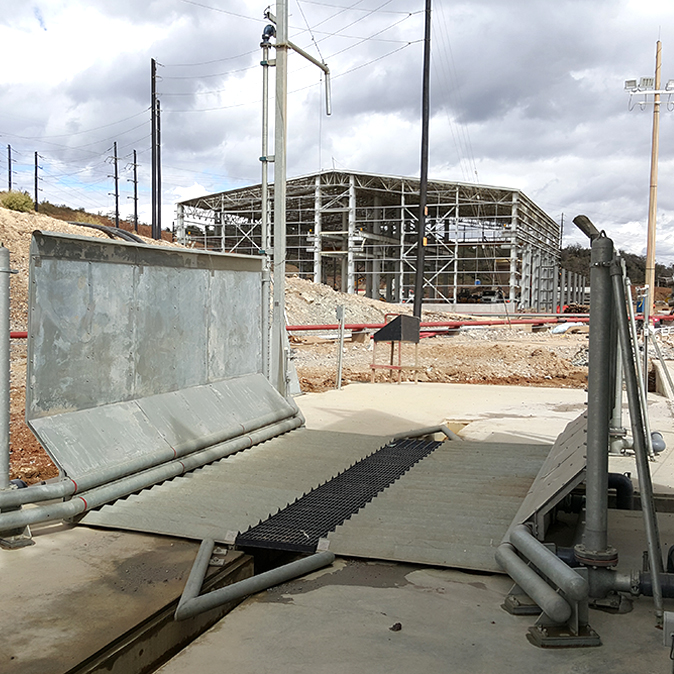

Mid construction - Tire Wash

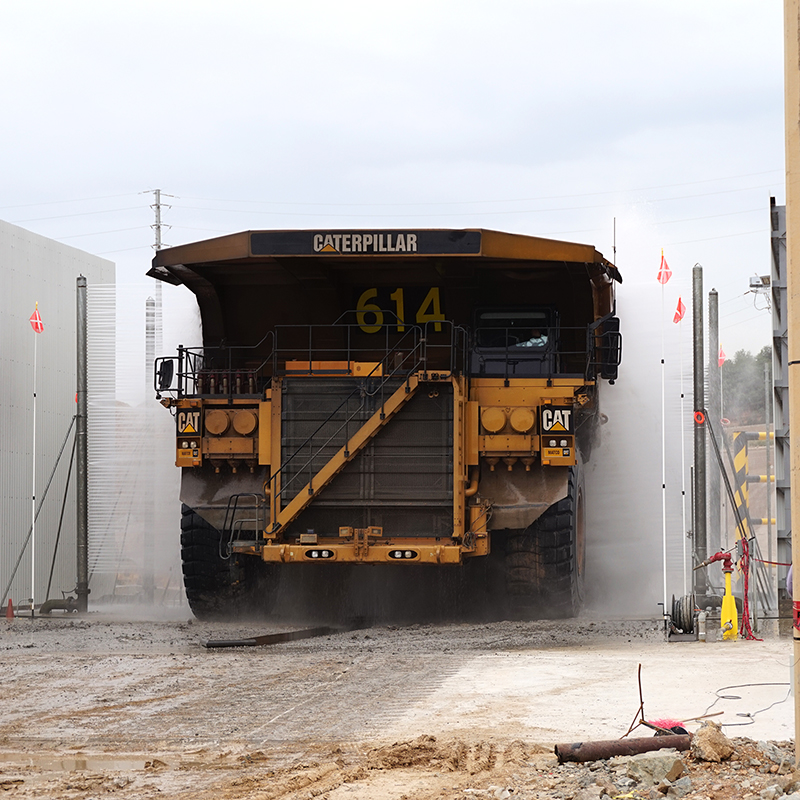

Haul Truck Wash
haul truck wash bay
( 100 ft long)
spray towers
83 high-pressure spray nozzles per tower
Underchassis Wash
1,600 GPM

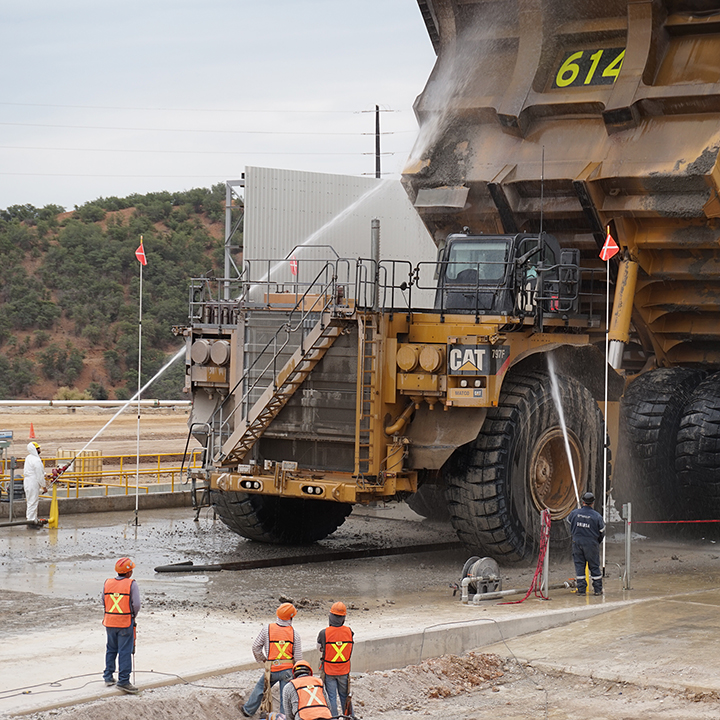

Dual wash monitors
High pressure spray

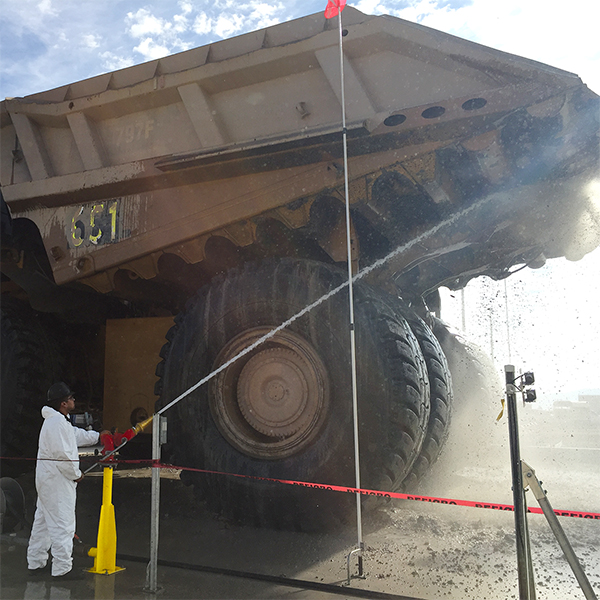

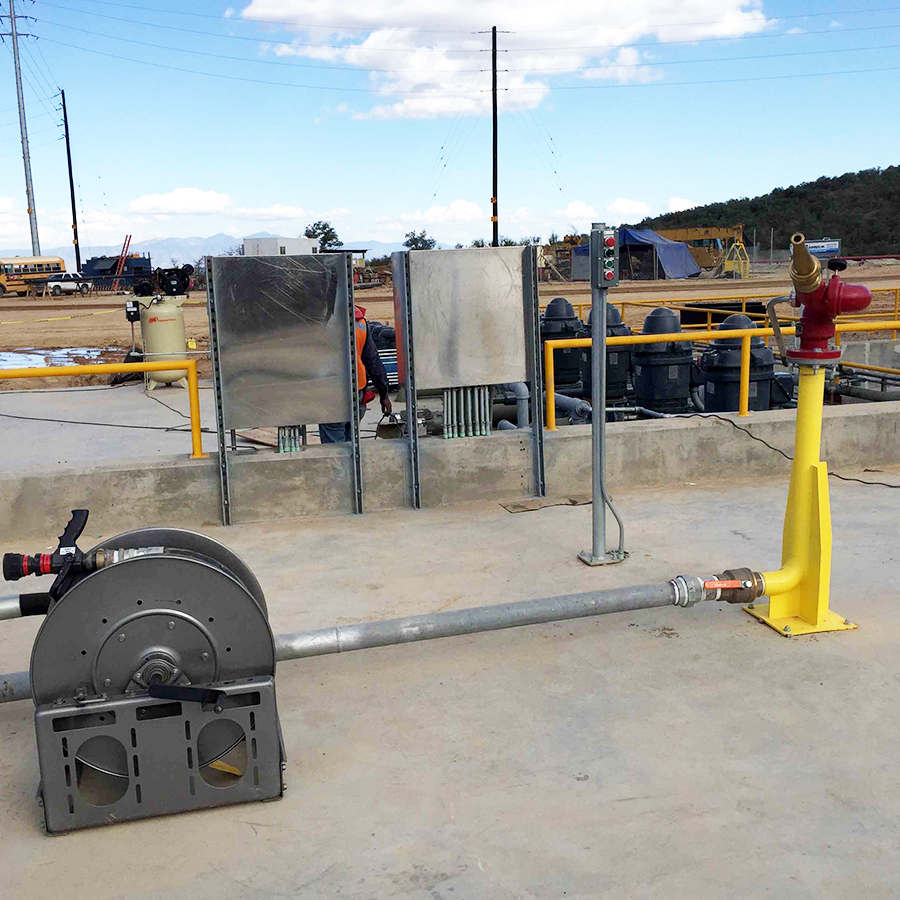

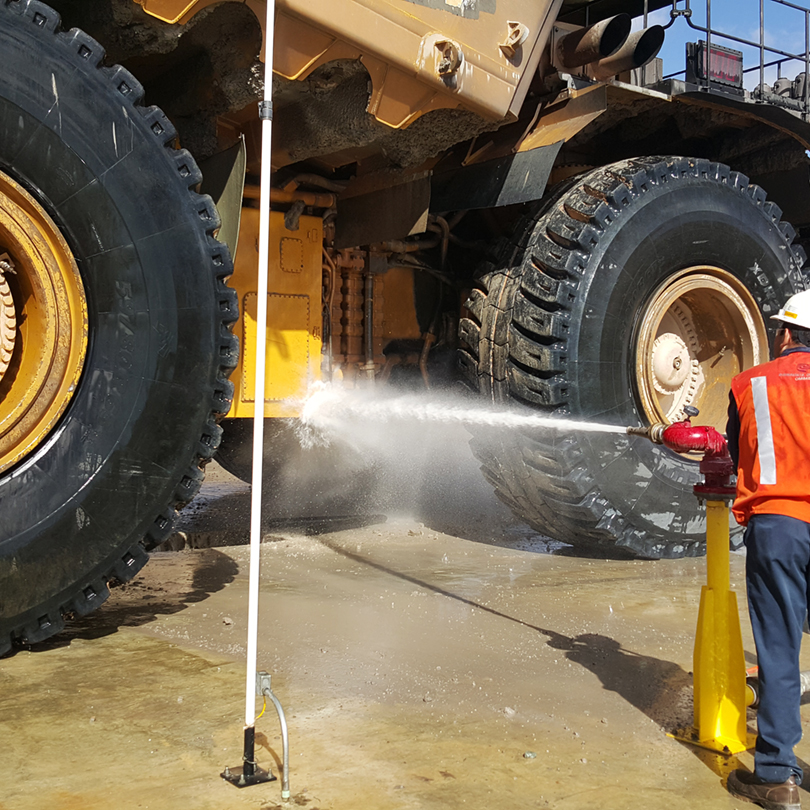

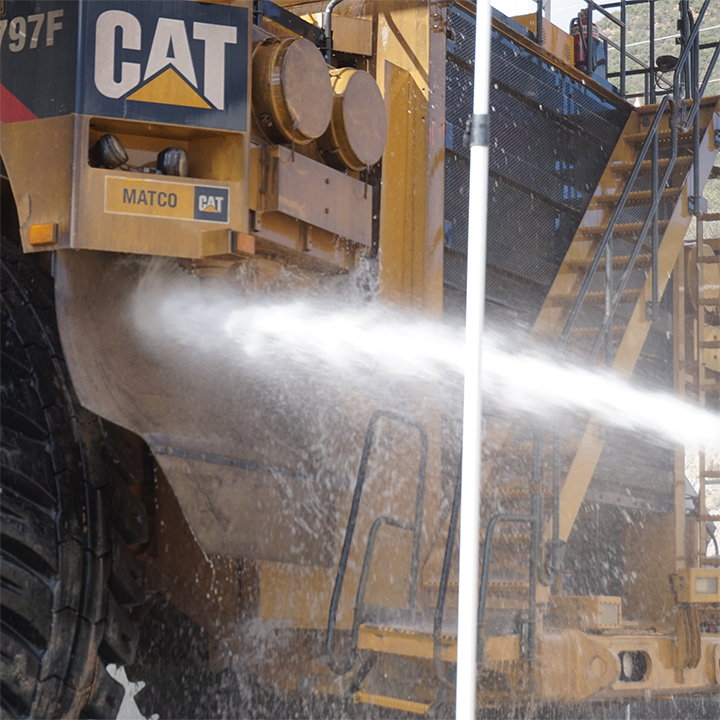

Monitor and Hose Reel
side spray towers
Chassis Wash
Chassis Wash
High-Flow
Wash Monitors

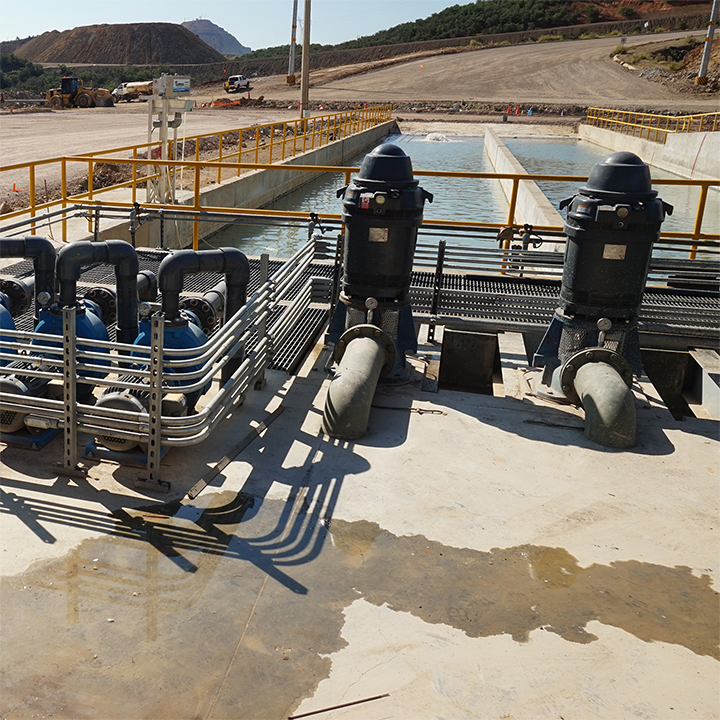

Reclaim Pits
High pressure Pumps
Filtered Wash Water
Light Vehicle Tire Wash
Wash Process

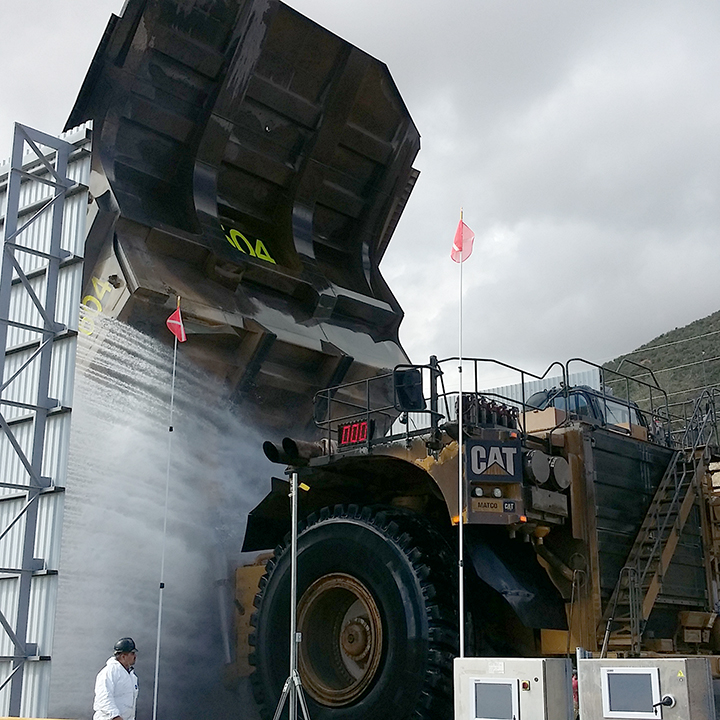

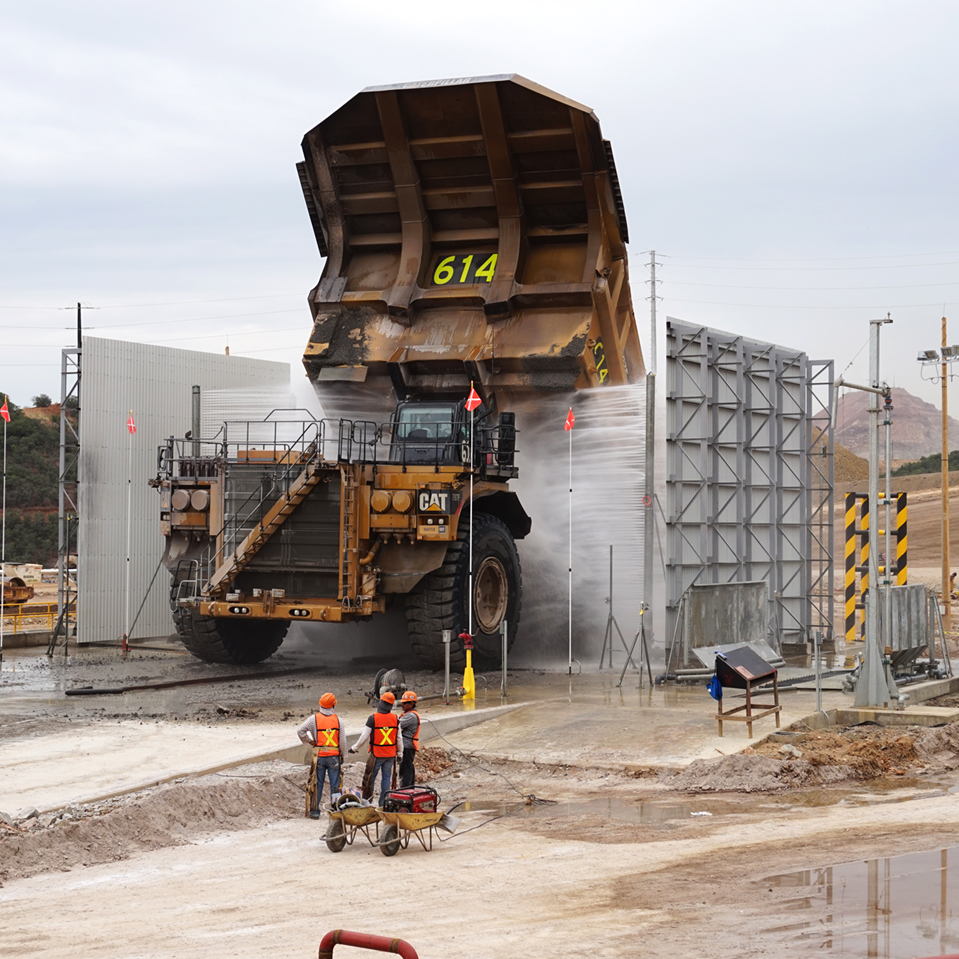

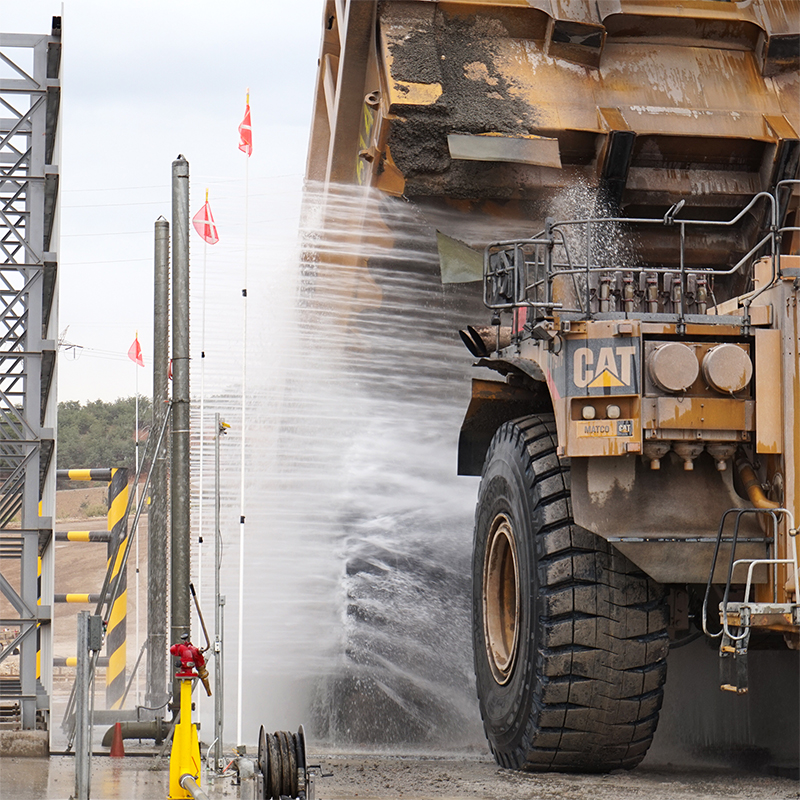

Side Spray Towers Power Wash
The Sides of Each Haul Truck
and clean under the truck bed

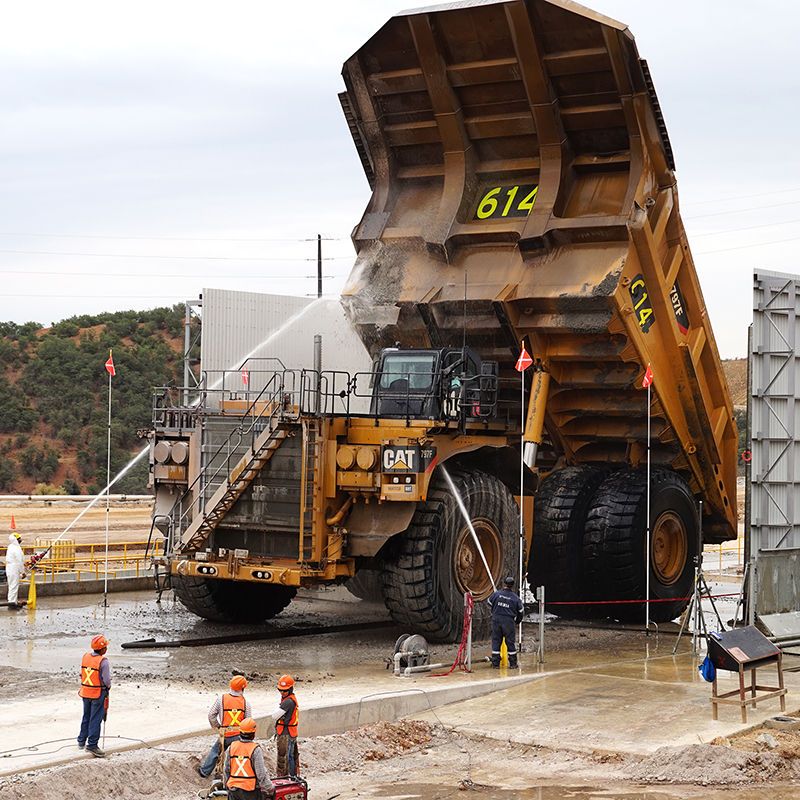

followed by High-Pressure monitors
Haul Truck 641

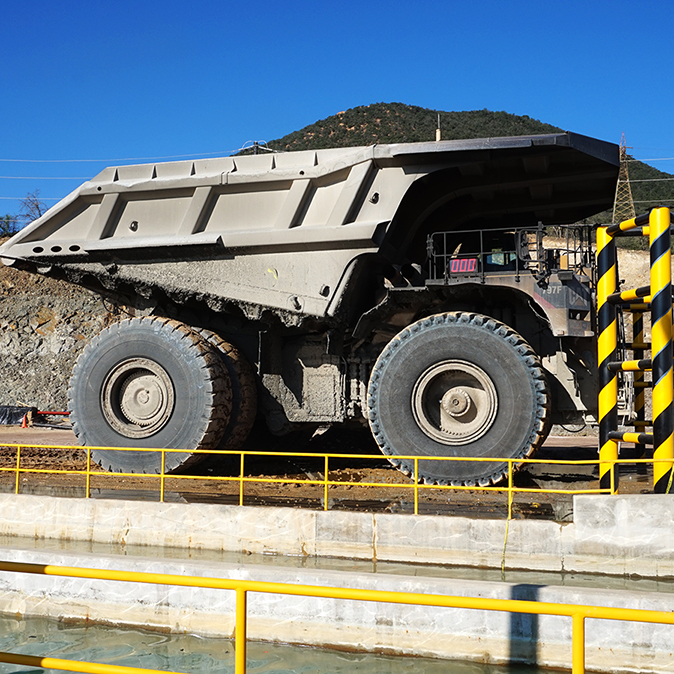

Haul Truck 641 Pre-Wash

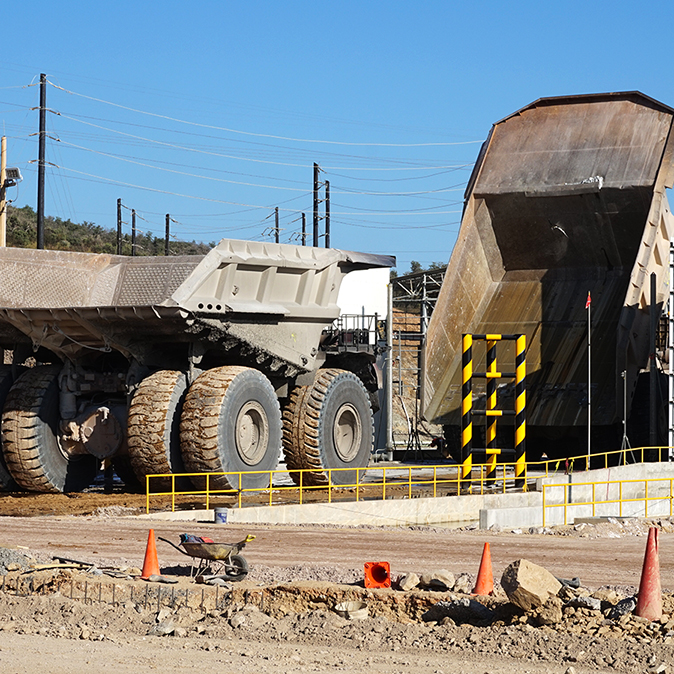

In Line for Haul Truck Wash

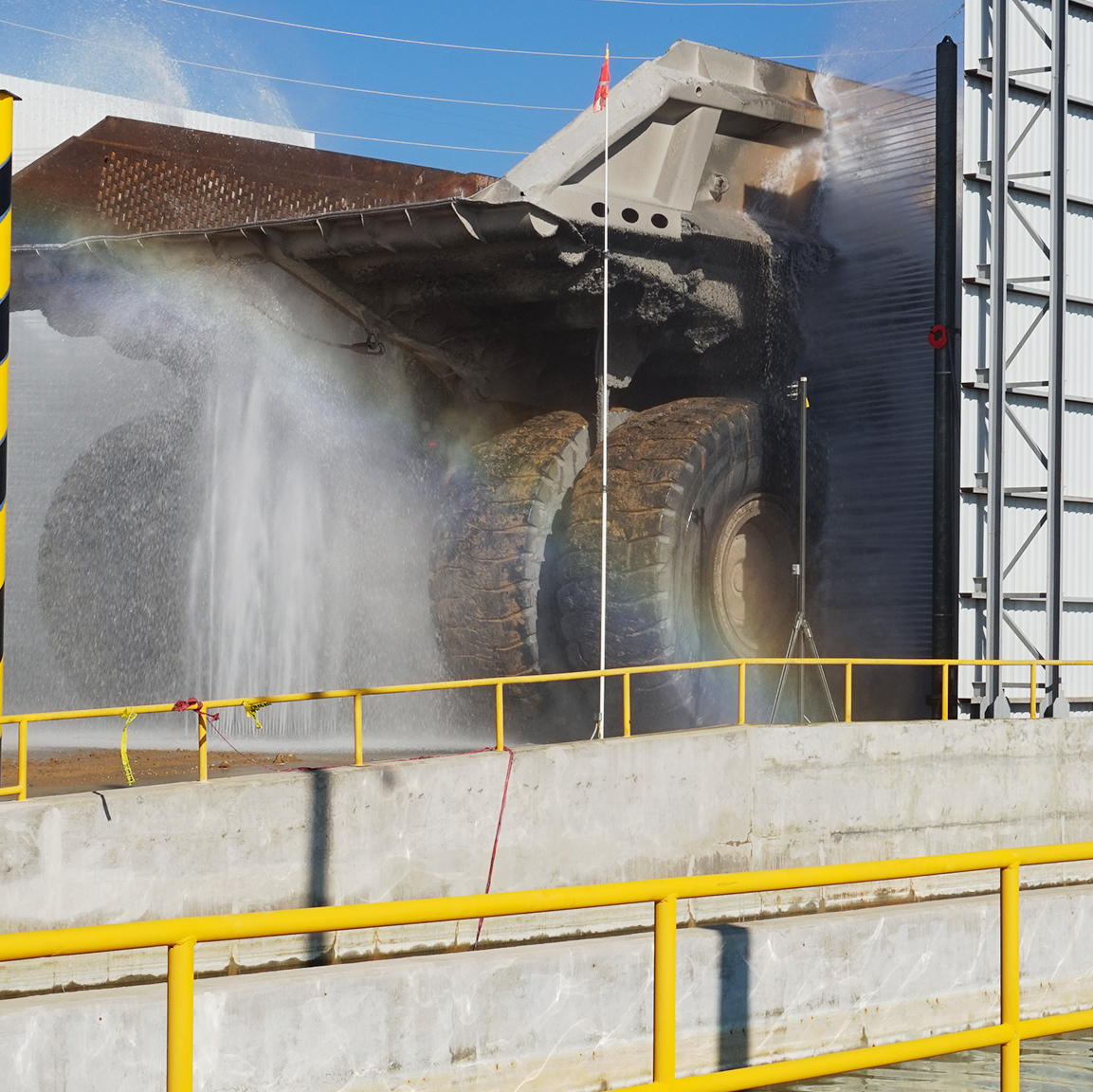

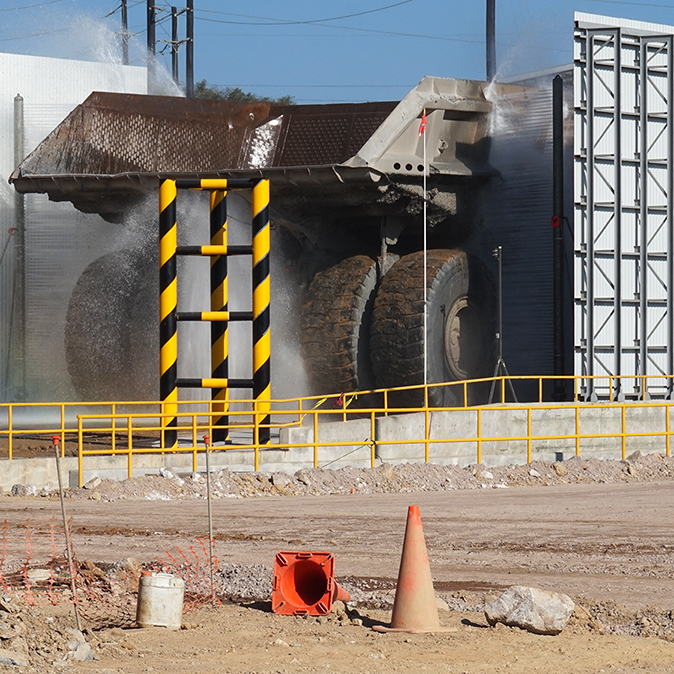

Rear Side Sprays

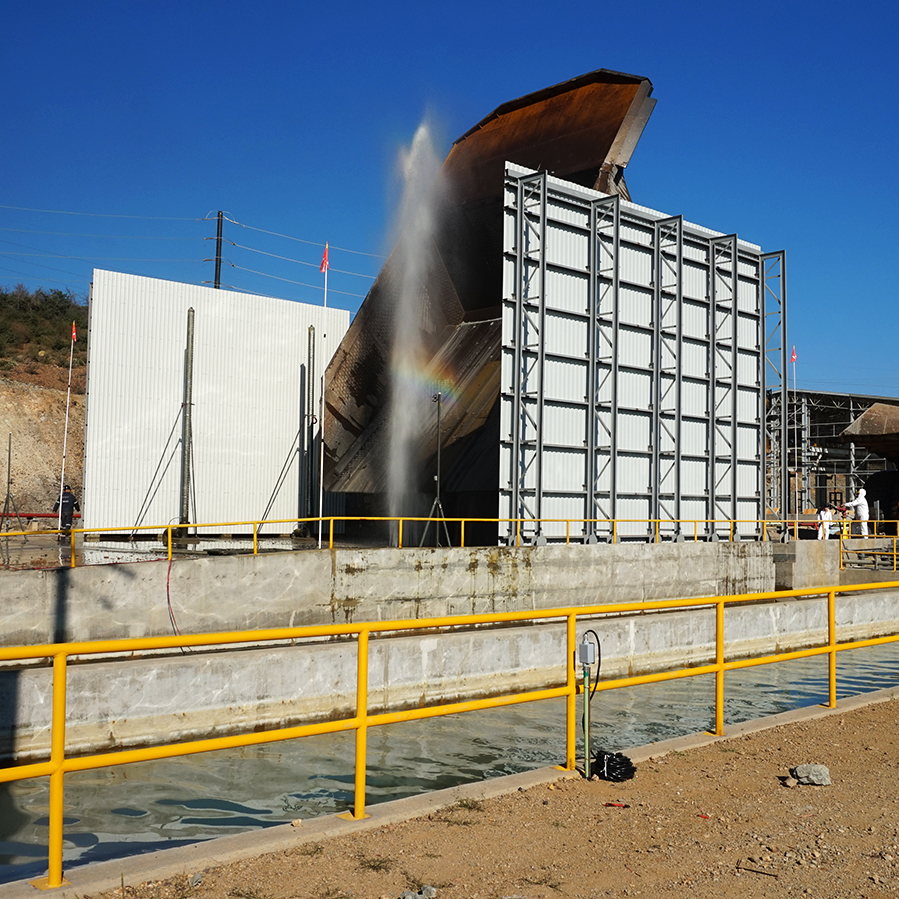

Chassis Wash

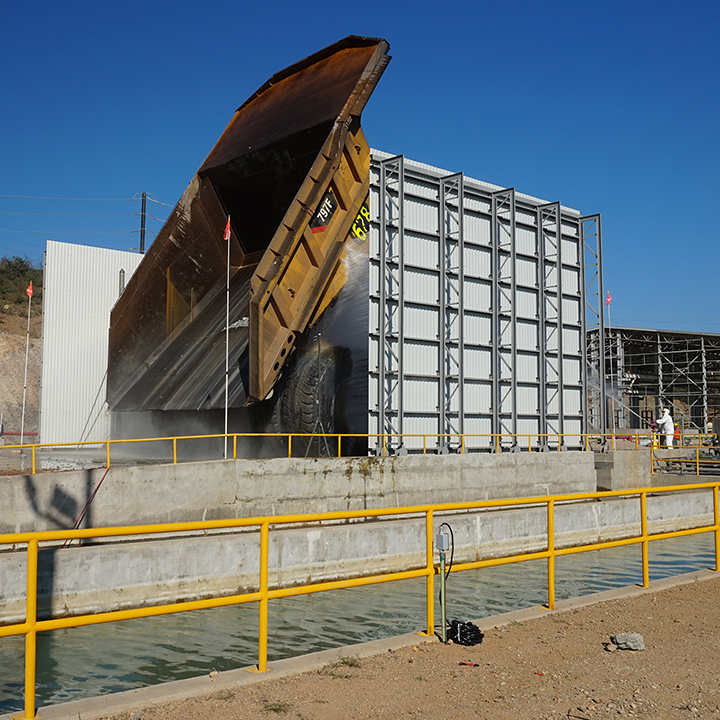

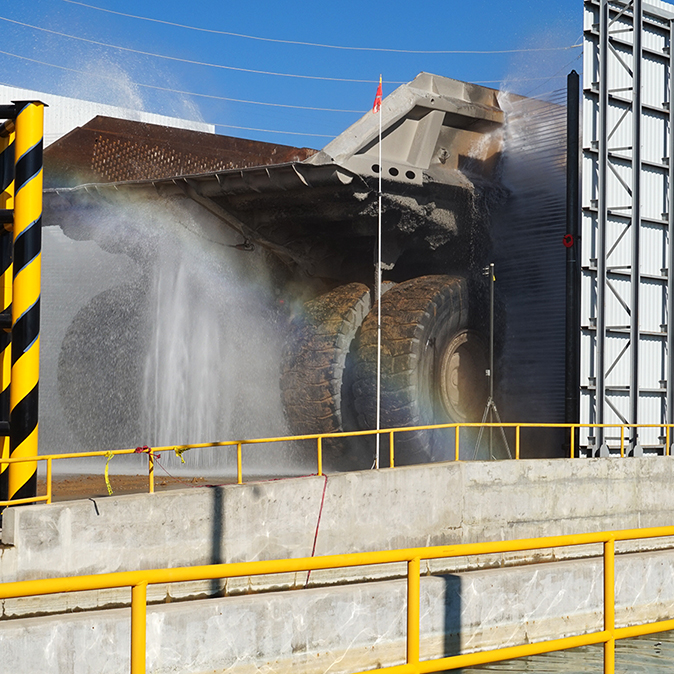

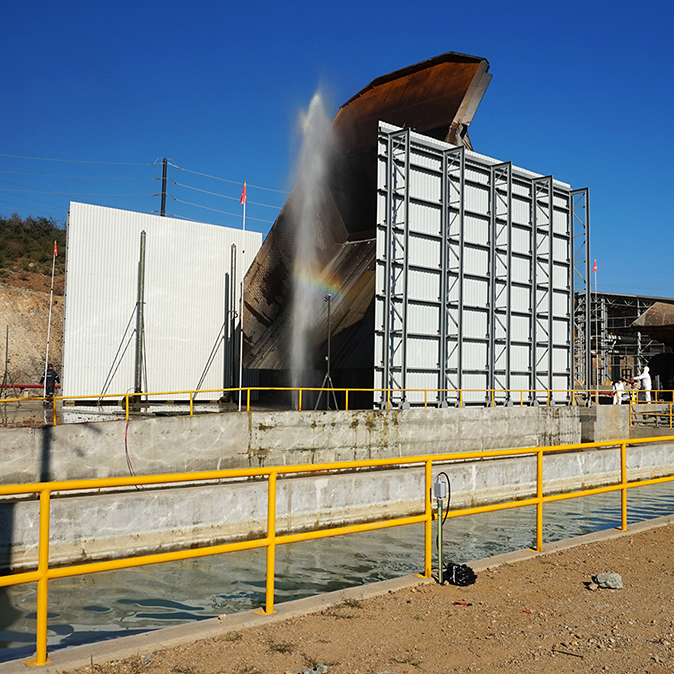

Chassis Wash and Reclaim Pit

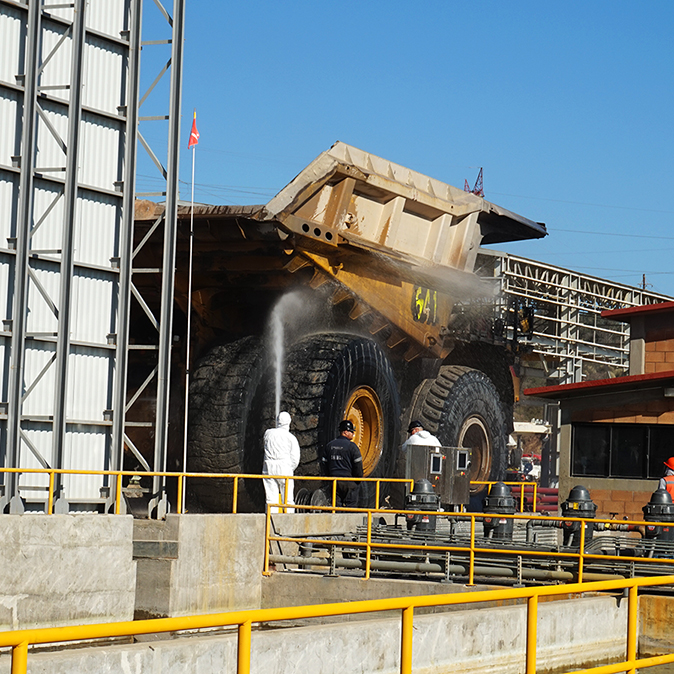

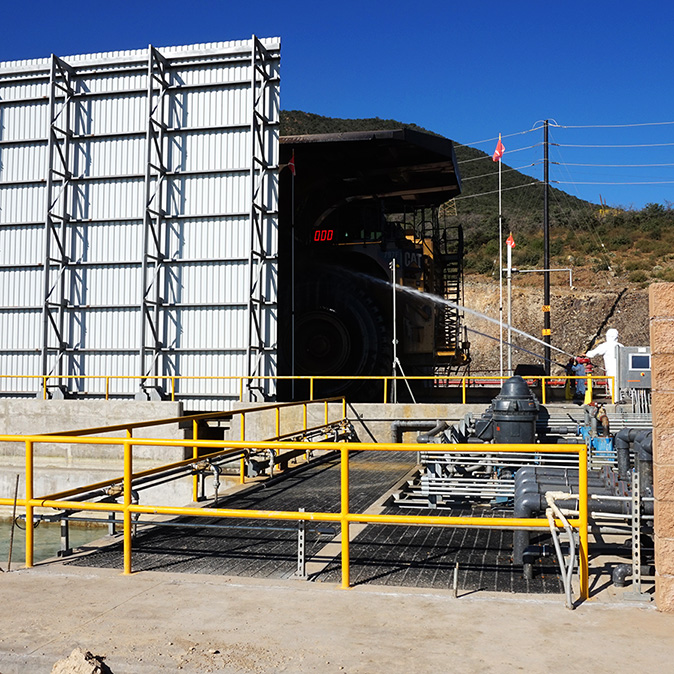

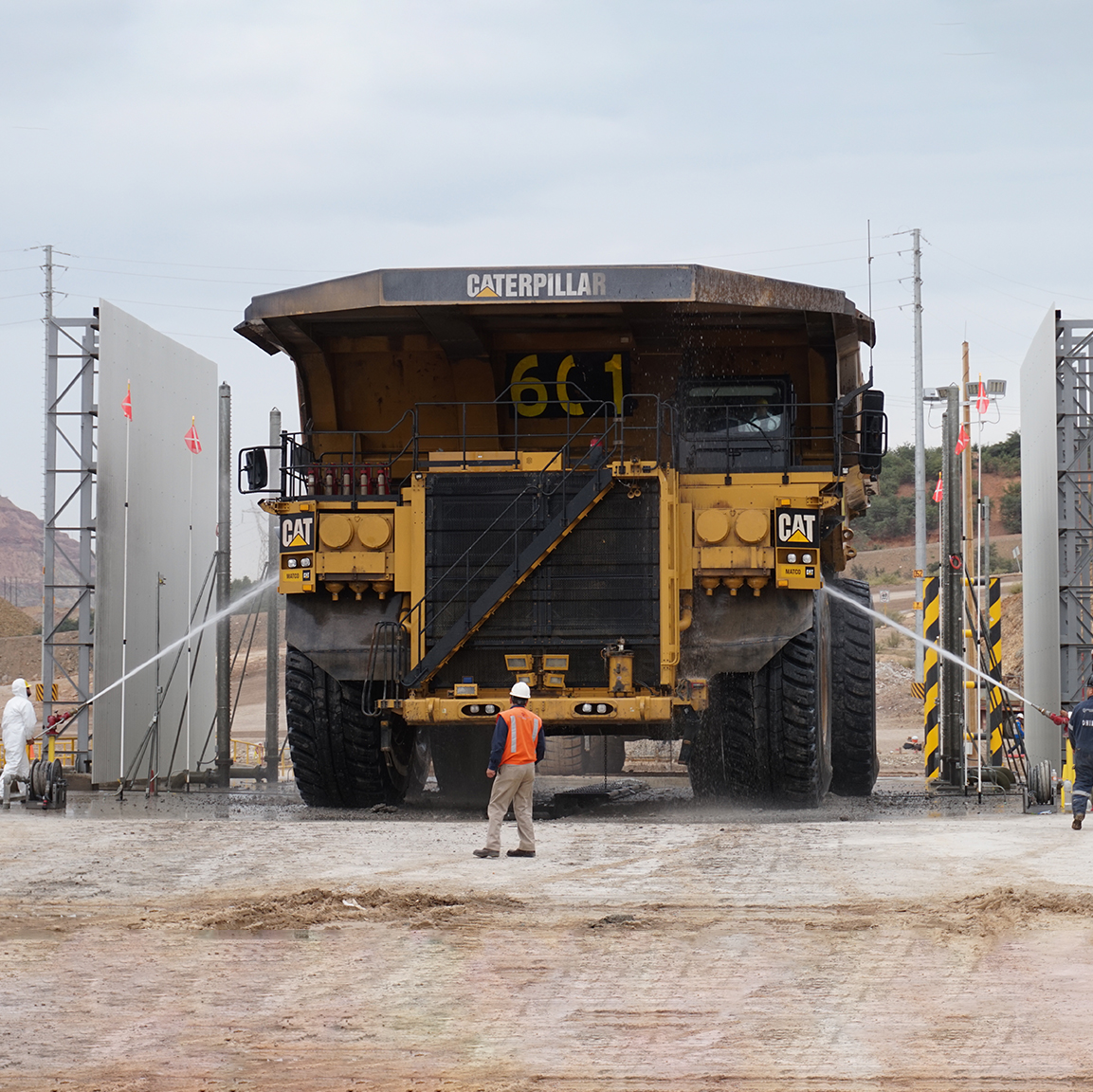

Monitors Used for Front and
Rear As Truck Pulls Through

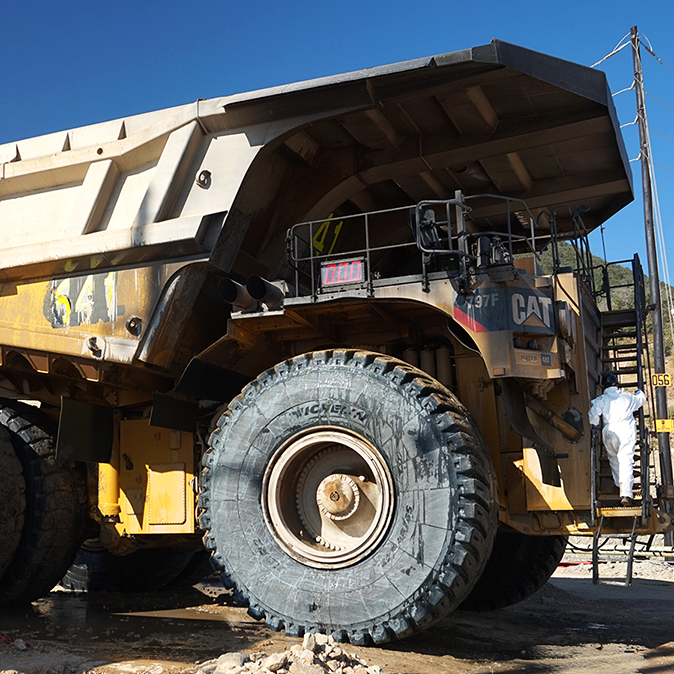

Haul Truck 641 After Wash
