Chassis Wash Systems For A Heavy-Duty Clean

Wash away dirt and contaminants from the undercarriage of your heavy equipment, fleet vehicles, and transit vehicles with our touchless chassis wash systems.

Talk To A Product Expert
Wash Systems
Photos
Videos
Drawings
Specifications
Downloads

About Our

Vehicle Undercarriage & Chassis Wash Systems

Powerful Chassis Wash Solutions for Trucks, Buses & Heavy-Duty Vehicles

Designed for trucks, buses, mining operations, military vehicles, and heavy-duty fleets, InterClean’s chassis wash systems deliver powerful and efficient underbody cleaning. Our wash systems effectively remove dirt, road salt, and corrosive buildup to safeguard critical components, reduce maintenance costs, and extend vehicle life.

We offer several chassis wash system options, including spinners, spray bars, CTW, and FST configurations. Whether you need an under-chassis wash system installed for transit vehicles, a fleet of trucks, or mining equipment, or military vehicles, we have you covered. Our systems can function as stand-alone units, integrate into a new InterClean wash setup, or enhance an existing wash bay, helping you keep vehicles clean and protected from dirt, grime, and corrosion.

Spinner Chassis Wash

An effective wash system that uses rotating nozzles for deep, powerful undercarriage cleaning.

  • Deep Cleaning Power – Centri®Spinner nozzles remove dirt, grime, and corrosive materials with high-volume, medium-pressure rotating sprays.
  • Superior Coverage – Rotating nozzles provide twice the wash coverage of standard sprays, giving you maximum cleaning performance.
  • Customizable for Heavy-Duty Use – Integrate multiple Centri®Spinners into your wash system to customize undercarriage cleaning, even for demanding jobs such as heavy mud removal.
  • Reliable Performance – Each new Centri®Spinner operates at 15-25 GPM with pressures up to 300 PSI and includes a three-year factory warranty.

Spray Bar Chassis Wash

Reliable, efficient chassis wash systems built for undercarriage cleaning in fleet operations that demand frequent washing.

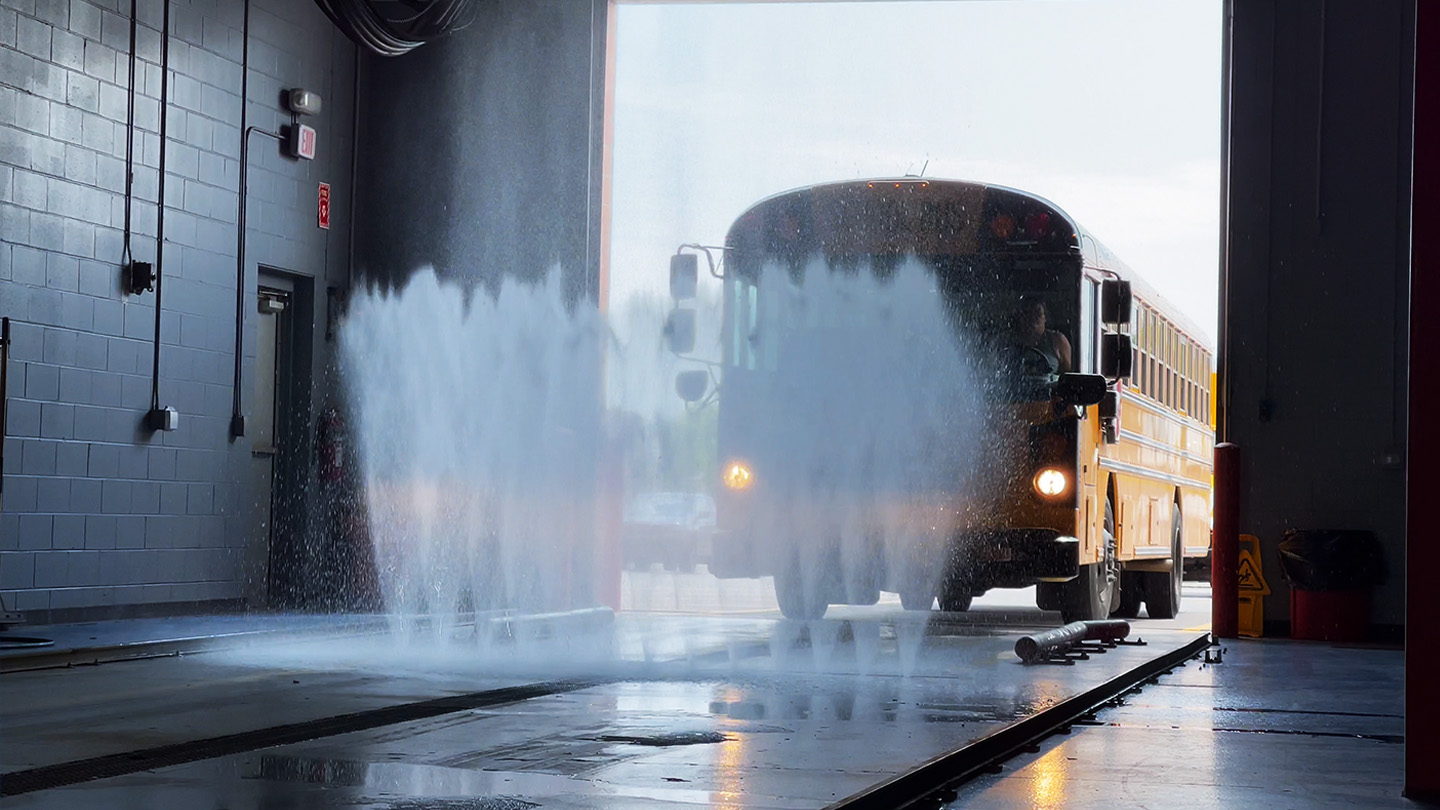

Standard Spray Bar Chassis Wash

An effective cleaning solution for buses or trucks that undergo regular wash cycles.

  • Optimized Cleaning Performance – Adjustable stainless steel fan spray nozzles, arranged in a staggered pattern, provide complete wash coverage.
  • Flexible Installation & Water Use – Can be installed as an in-ground or under-ramp system, using fresh or reclaimed water at adjustable flow rates and pressure.

Oscillating Centri®Spinner Spray Bar

Our chassis wash system delivers powerful cleaning for stationary vehicles, built to handle heavy-duty industrial and commercial undercarriage applications.

  • Comprehensive & High-Pressure Cleaning –  The oscillating spray bar, featuring 10 Centri®Spinner nozzles per module, delivers 15 GPM at 300 PSI per nozzle, resulting in a total of 150 GPM per manifold assembly.
  • Scalable for Large Fleets – Multiple modules can be combined to extend undercarriage wash coverage for semi-trucks, making it an ideal wash system for high-volume fleet operations.
Chassis Wash - Oscillating Spinners

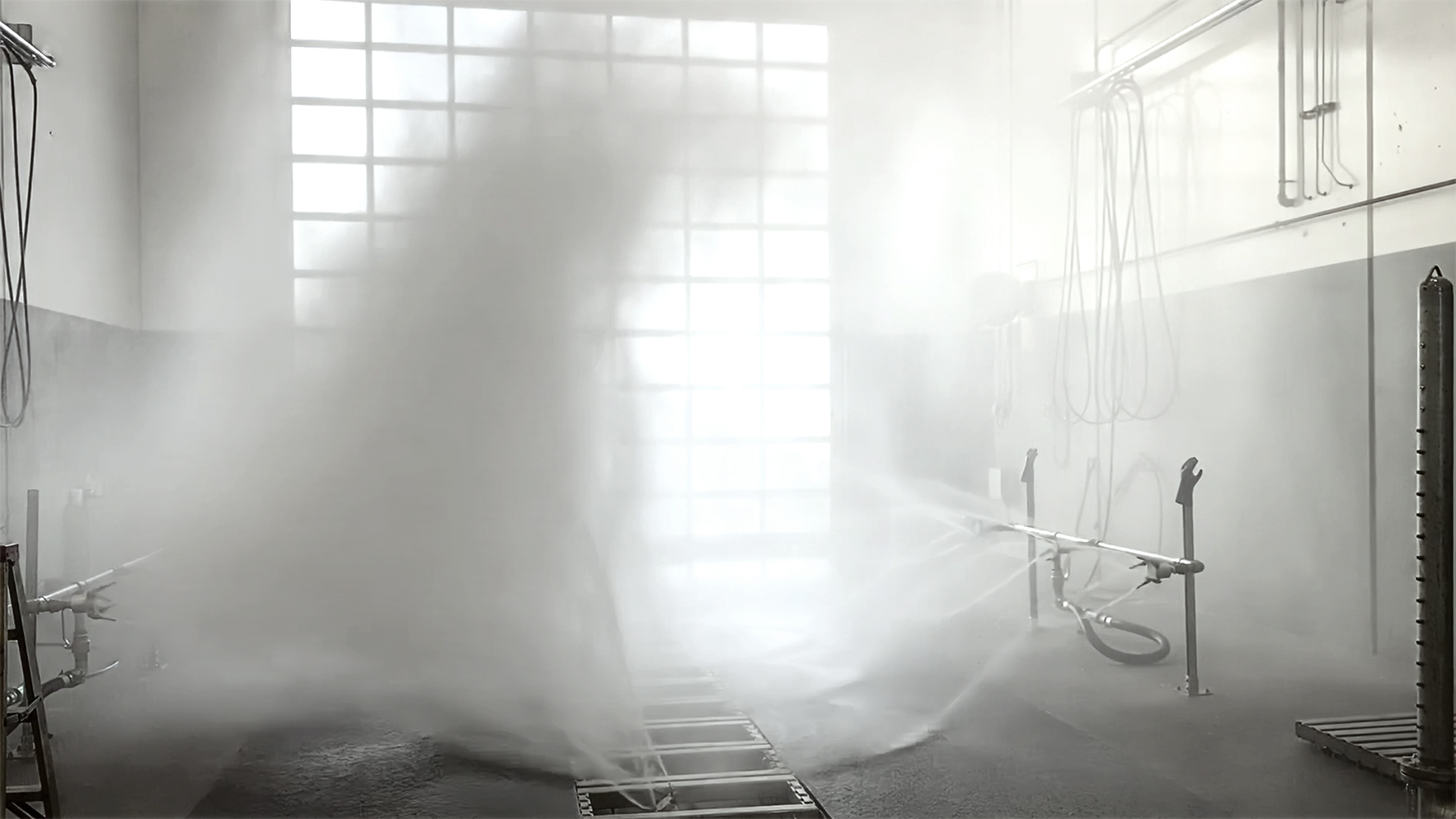

Surrus Pipeline - Osc Chassis2

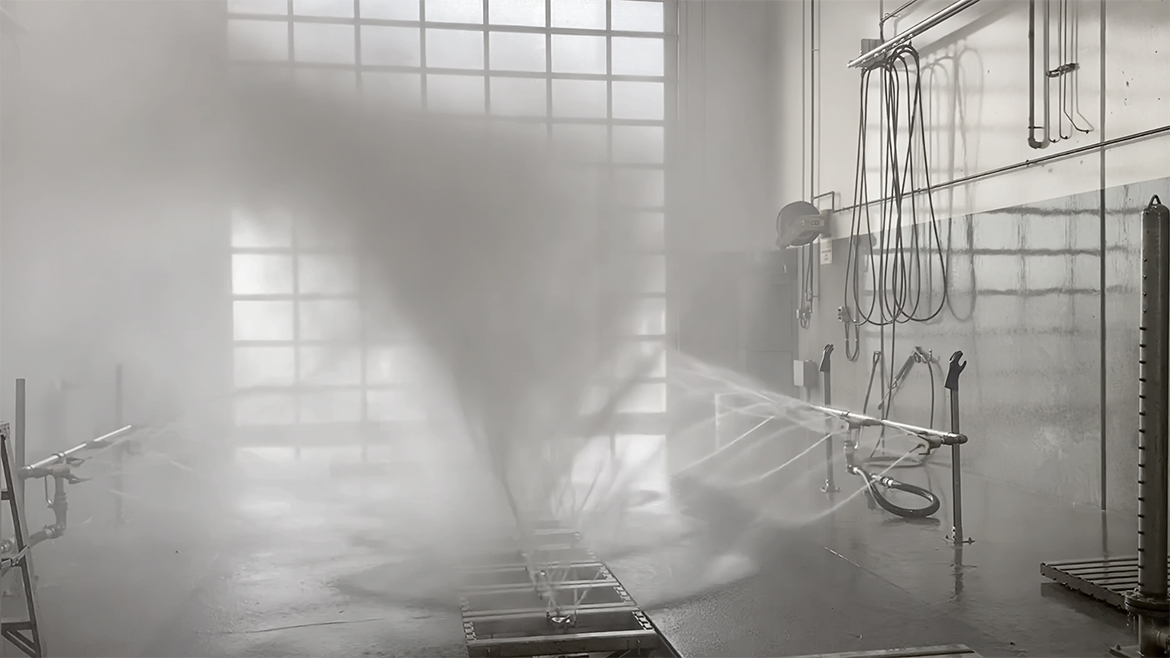

Surrus Pipeline - Osc Chassis1
Chassis Wash - CTW - Military

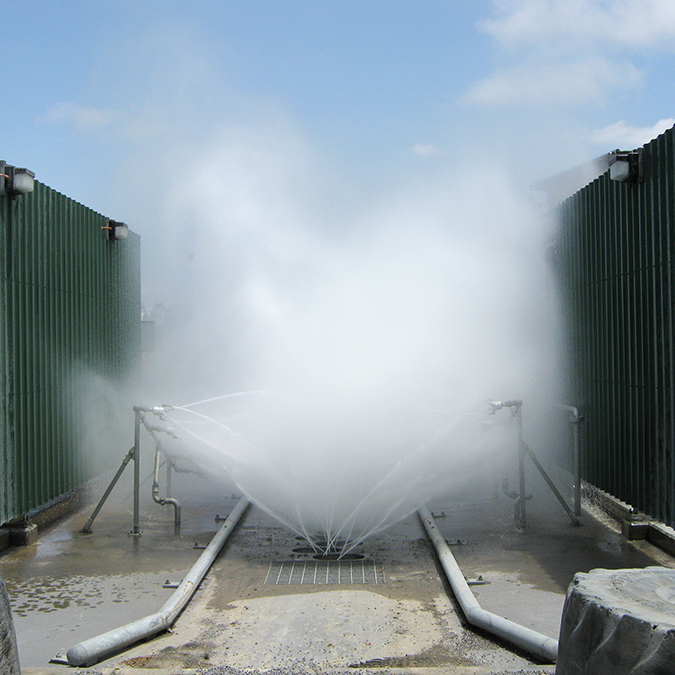

Chassis Wash - CTW - Mining
Chassis Wash - CTW - Semi Truck
Chassis Wash - CTW - Slt Truck

Heavy Duty Chassis Wash Systems

Industrial-grade wash systems built for semi trucks, construction equipment, military fleets, and other heavy-duty vehicles.

  • Comprehensive Undercarriage Cleaning – FST and CTW chassis wash systems deliver complete undercarriage coverage for effective cleaning, salt removal, and demucking.
  • Fresh or Reclaimed Water Options –  Systems run on fresh or reclaimed water, with a selectable Fresh/Reclaim option for flexibility.
  • FST Chassis Wash –  Includes 23 fixed high-pressure nozzles, a 300 GPM pump at 300 PSI, and multiple size options available to suit different wash system needs.
  • CTW Chassis Wash –Equipped with 60 fixed high-pressure nozzles, our wash systems deliver flow rates starting at 350 GPM as well as pressure between 70 and 140 PSI, depending on your configuration.
CHASSIS WASH - CTW (CONSTRUCTION)
CHASSIS WASH - CTW (MILITARY)
CHASSIS WASH - CTW (FLEET)
2 spinner
4 spinner
CHASSIS WASH - FST (SALT TRUCK)

Chassis Wash Spinner

Chassis Wash FST

Contact Us For Detailed Specifications
Under Chassis Wash Systems and Under Body Wash Equipment

Chassis Wash Systems Brochure

InterClean Chassis Wash Systems

Why Use Our Chassis Wash Systems

Cleaning the underbody of your vehicles is essential for preventing rust and corrosion caused by work site conditions, road debris, and winter chemicals. Our powerful chassis wash removes the mud, grime, chemicals, contaminants, grease, and other buildup that can contribute to costly repairs

Reduce Maintenance Prep Time

Have your vehicles cleaned and ready for inspection or repair faster. Our chassis wash systems quickly remove built-up grime, salt, and debris from the undercarriage, allowing your maintenance crews to access critical components without spending time manually cleaning the vehicle. By streamlining the cleaning process, technicians can begin inspections, diagnostics, and repairs much sooner.

Increase Sustainability

Equip your wash system with the optional EQ100 high-pressure, anti-turbulent water recycling module, designed to reclaim up to 90% of wash water with no chemical additives. This feature reduces your reliance on high volumes of fresh water for every wash. The EQ100 module can produce up to 300 GPM of recycled, clean, and optically clear water that doesn’t compromise on wash quality and performance.

Prolong Vehicle Lifespan

Heavy machinery and vehicles returning from tough days at construction sites or industrial sites often have their chassis and tire treads coated in mud, debris, and harmful contaminants. If left uncleaned, this buildup can add weight and accelerate wear on the driveline and braking systems. InterClean’s chassis wash systems effectively remove dirt, corrosive materials, and grime from the undercarriage, helping extend vehicle life and reduce maintenance costs.

Enhance Safety

InterClean’s automated chassis wash systems provide a fast, effective solution for cleaning vehicle underbodies. Operators simply drive through with no manual scrubbing required, reducing exposure to safety hazards and limiting the risk of contaminants entering your facility. A cleaner undercarriage also makes it easier to inspect and maintain vehicles, supporting safer, more efficient operations.

Regardless of the type of equipment that’s in your fleet, InterClean offers chassis washing solutions tailored to your needs, so that vehicles maintain peak performance.

Partner With InterClean for Your Next Wash System

Revolutionize your vehicle wash process with InterClean’s unparalleled expertise in heavy-duty vehicle washing. Fill out the form today and discover how our innovative wash systems can enhance your operations.

1 (800) 468-3725
Find a Distributor

Contact Us

"*" indicates required fields

This field is for validation purposes and should be left unchanged.
Name*
Why are you contacting InterClean today?*
Please include any questions, additional details, or information that will help us better respond to your request.

Frequently Asked Questions

A chassis wash helps prevent the buildup of corrosive materials such as salt, grime, and road debris on the undercarriage of vehicles. Consistent cleaning reduces the risk of rust buildup and corrosion, which can damage vital components, including brake lines, suspension, and the vehicle frame. By keeping the underbody clean, you can improve your vehicle’s reliability, reduce repair costs, and extend the overall lifespan of your fleet.

Yes. InterClean chassis wash systems are fully customizable to handle a diverse variety of fleets, including public transit, school buses, semi-trucks, military vehicles, mining equipment, and more. Whether you need drive-through spinner set-ups, stationary spray bars, or high-pressure FST and CTW systems, we offer adaptable and scalable options that fit your vehicle size, wash frequency, and site layout.

Yes, absolutely. Our chassis wash systems are built to operate with either fresh or reclaimed water. Paired with InterClean’s advanced EQ 100 water recycling modules, up to 90% of wash water can be recovered and reused. This not only reduces water usage and environmental impact but also lowers utility costs, making the system both cost-effective and eco-friendly.
