Surerus Pipeline
Ft. Saint John, BC, Canada
Wash System Highlights
HEAVY DUTY WASH

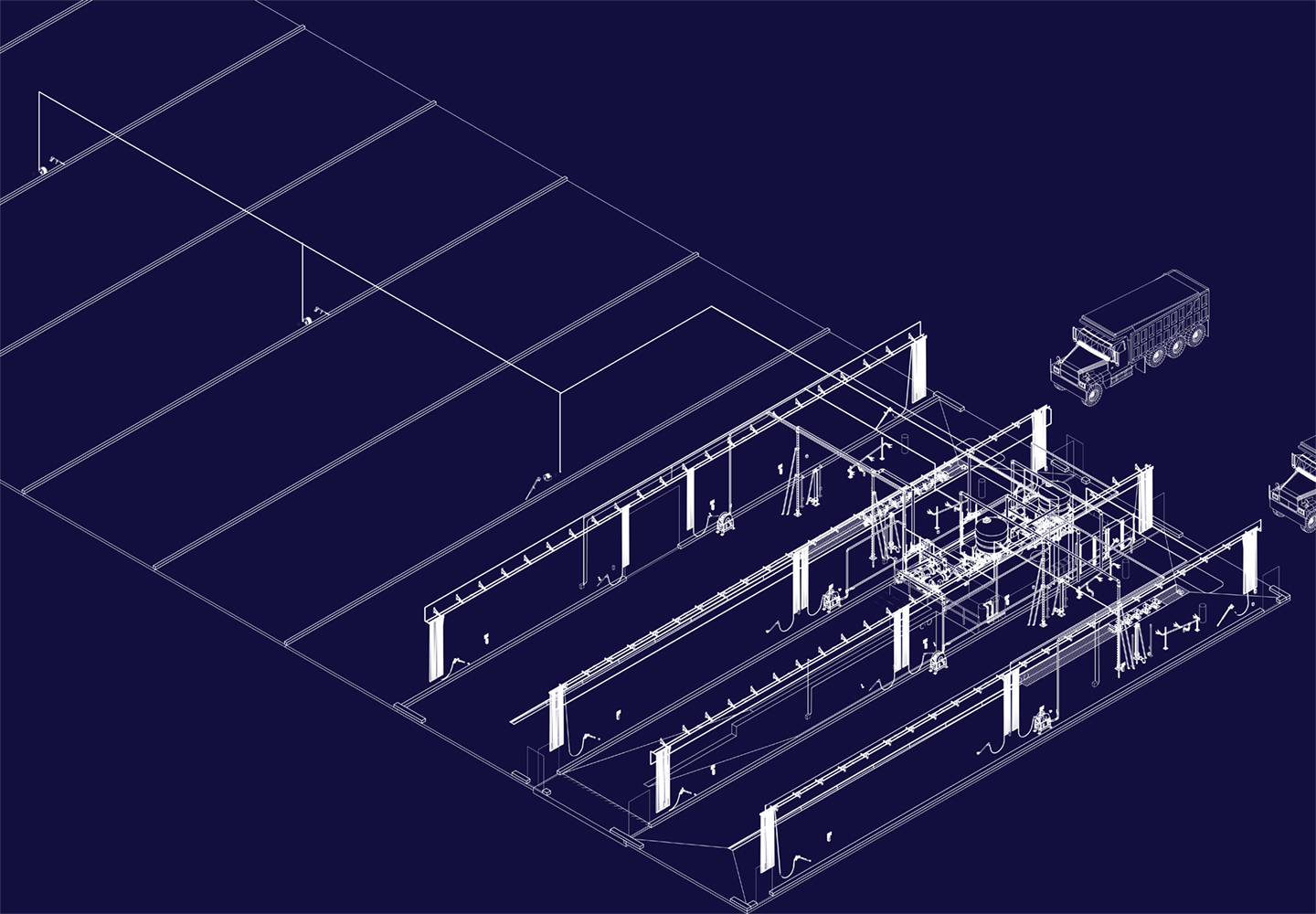

Multi-Lane Design
-
- 2 lane, indoor light vehicle wash using both fresh and reclaimed water
Chassis Wash, Manual Wash, Wheel Wash, Side Spray Bars
-

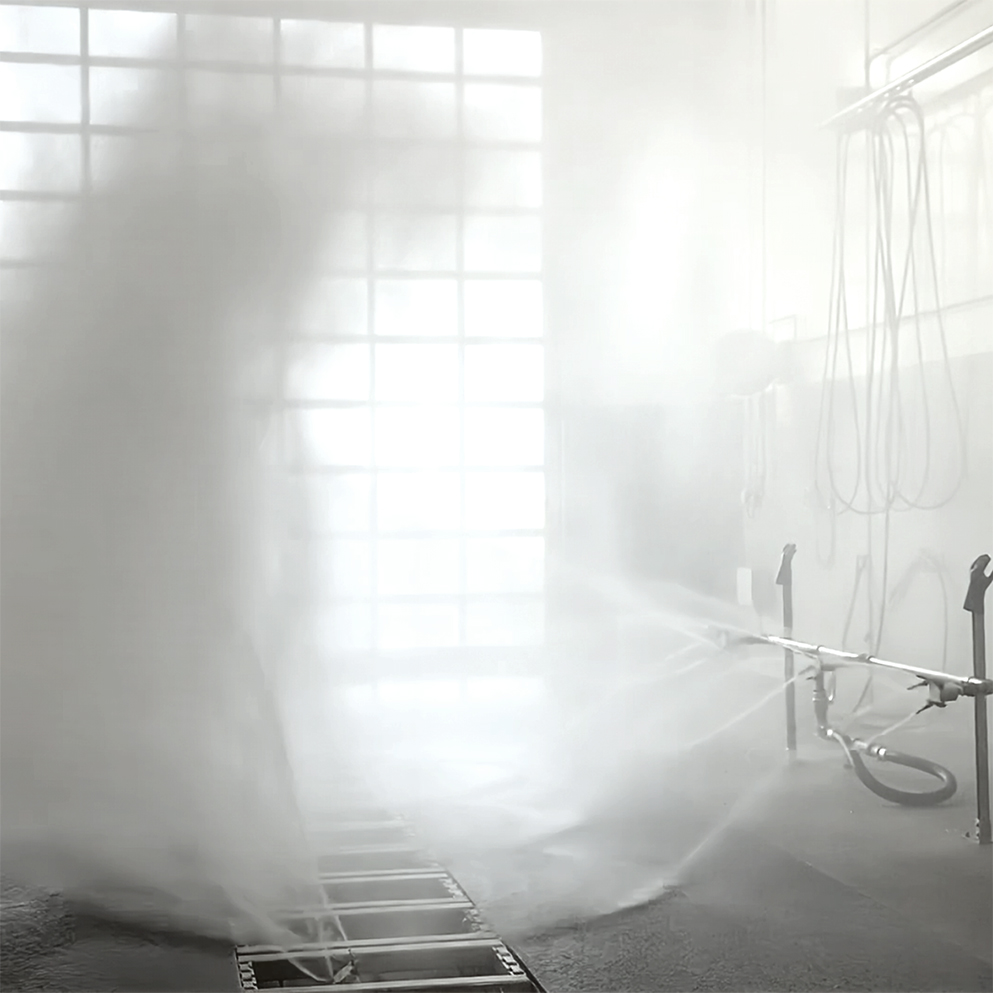

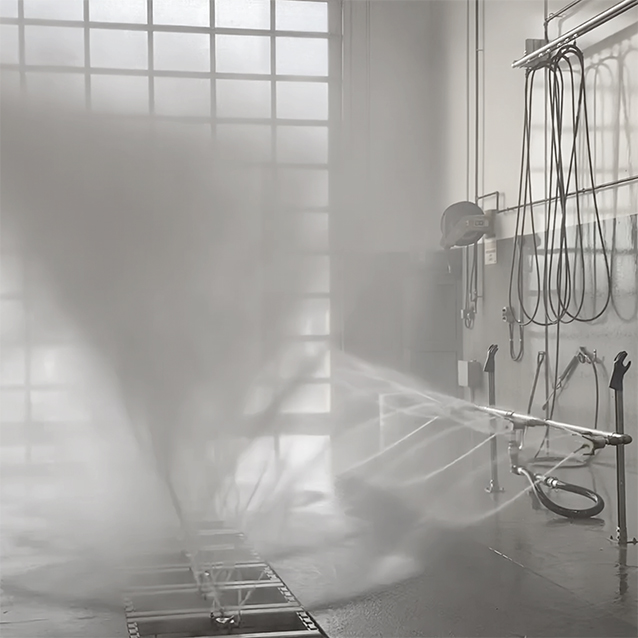

Chassis Wash
- 10 zero-degree spinner spray nozzles:
- Bay 1: fixed in position
- Bay 2: oscillate 90 degrees to provide additional coverage of the vehicle chassis
-

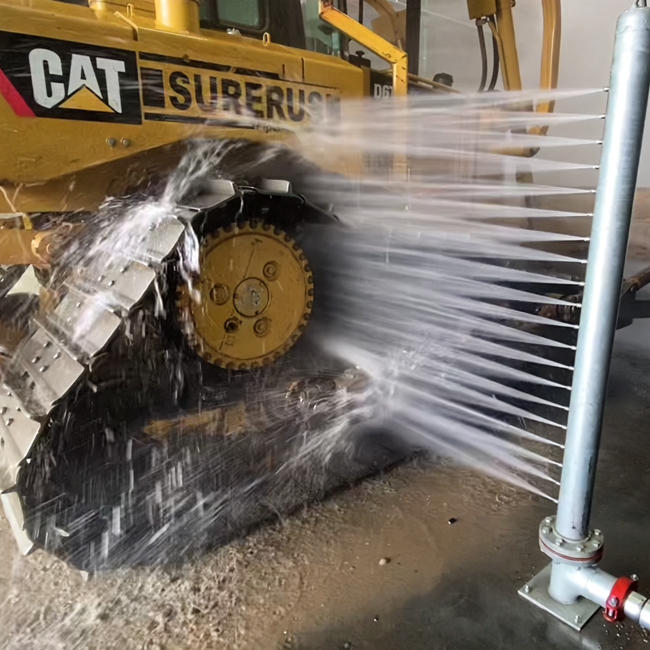

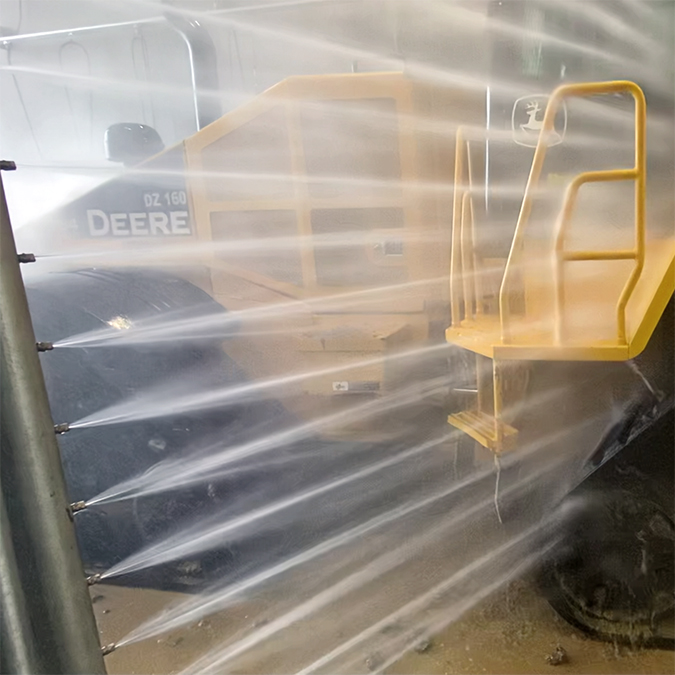

Wheel Wash and Side Spray Bars

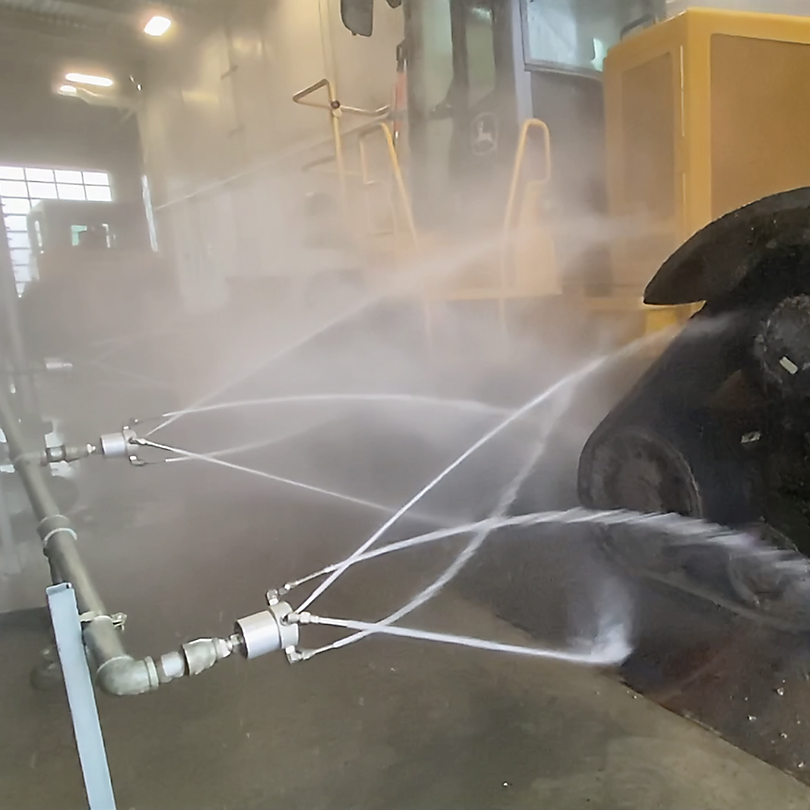

- Wheel Wash
(3) zero-degree hi-flow spinner heads mounted diagonally to each bar for maximum cleaning coverage - Side Spray
(20) hi-pressure nozzles clean vehicle sides as it passes through the wash

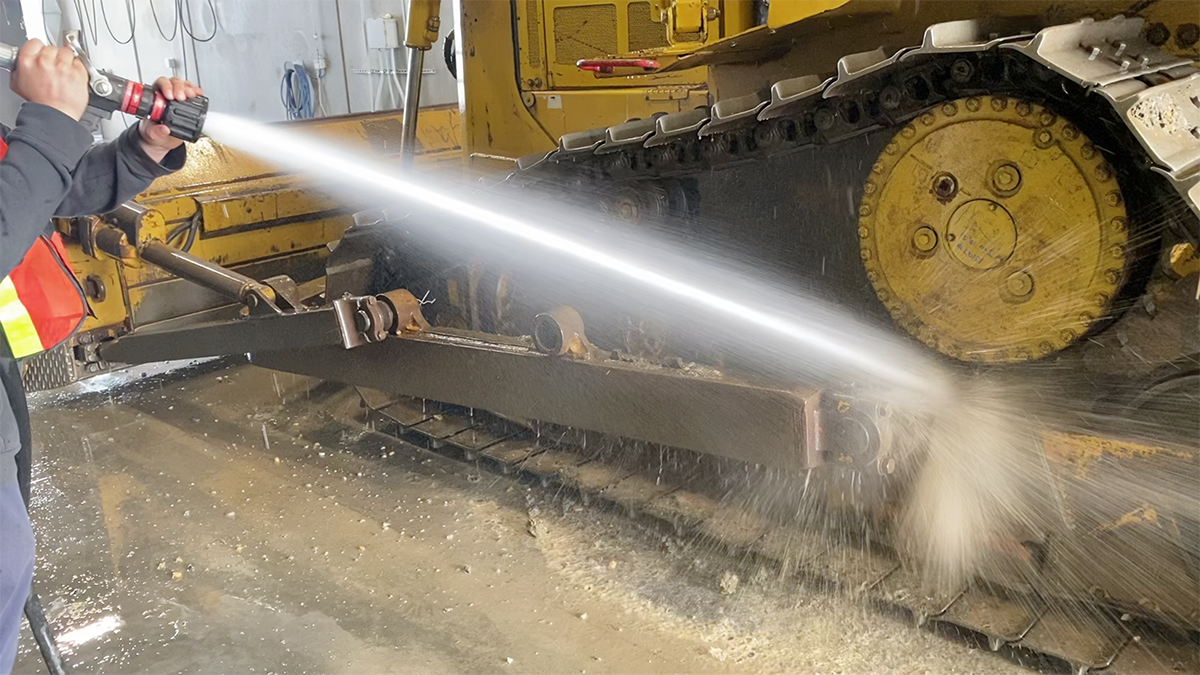

- Wheel Wash
- (2) 75’ high-pressure hoses with adjuster ring to change the flow rate
- (4) pressure washer assemblies - 110’ hose and high-pressure wash gun
Wash Water Recycling
-
- Wash water reclaim pit
-
- EQ Module and bioremediation water filtration system
-
- 500-gallon, conical-bottom tank stores reclaimed water after filtration
About
Surerus Pipeline
The Surerus Pipeline site, situated in Fort Saint John, British Columbia, is overseen by Surerus Pipeline Inc. Surerus has been undertaking the construction of large-scale pipeline and infrastructure projects for more than 50 years.
